CentOS 7 Desktop installation steps with Screenshots

The CentOS Project is pleased to announce the release of CentOS 7 on July 7th 2014. CentOS is RHEL clone. IN real world 95% of cPanel servers running with CentOS. The new release of CentOS 7 have lots of new features compare with previous release. In this article I’m going to install CentOS 7 GNOME based Desktop installation with detailed steps and Screen-shots.

New features in CentOS 7

CentOS 7 was release with lots of new features.

  • Implemented Systemd
  • GNOME 3.10
  • Default filesystem XFS
  • Kernel updated to 3.10
  • Support for Linux Containers
  • OpenJDK-7 as default JDK
  • LVM-snapshots with ext4 and XFS
  • Implemented firewalld and GRUB2
  • KDE 4.10
  • Apache HTTP Server 2.4
  • MariaDB 5.5
  • PostgreSQL 9.2
  • Samba 4.1.0 with many new features and improvements. For complete change log
  • For Detailed change logs
  • CentOS official home page

Download CentOS 7 images

Only one ISO for everything (CentOS 7 GNOME Desktop, CentOS 7 KDE Desktop, CentOS Server).

1) Booting Computer with CentOS 7 installation media.

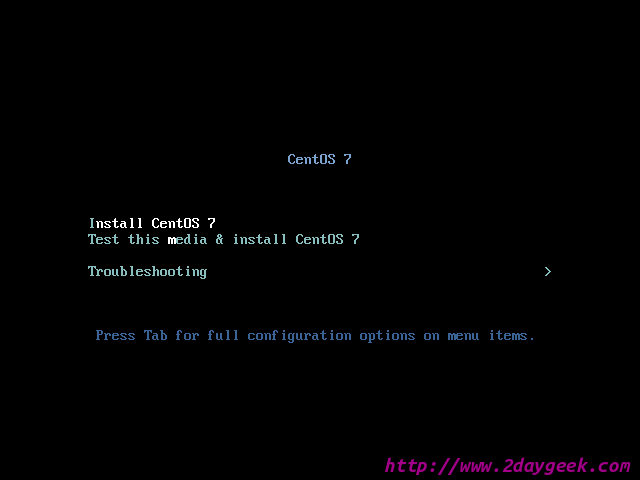

Boot your computer with CentOS 7 installation media like (Burned CD/DVD or USB or ISO image). Choose your Boot option, For fresh installation you need to choose Install CentOS 7 and hit Enter button.
centos-7-desktop-installation-steps-with-screenshots-1a

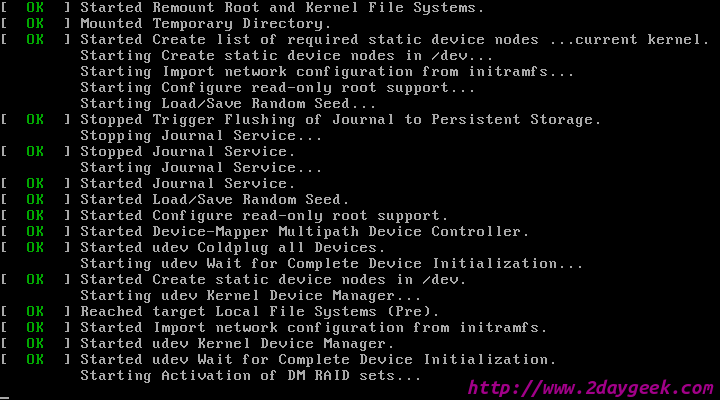

Starting all the services from init and run level.
centos-7-desktop-installation-steps-with-screenshots-2a

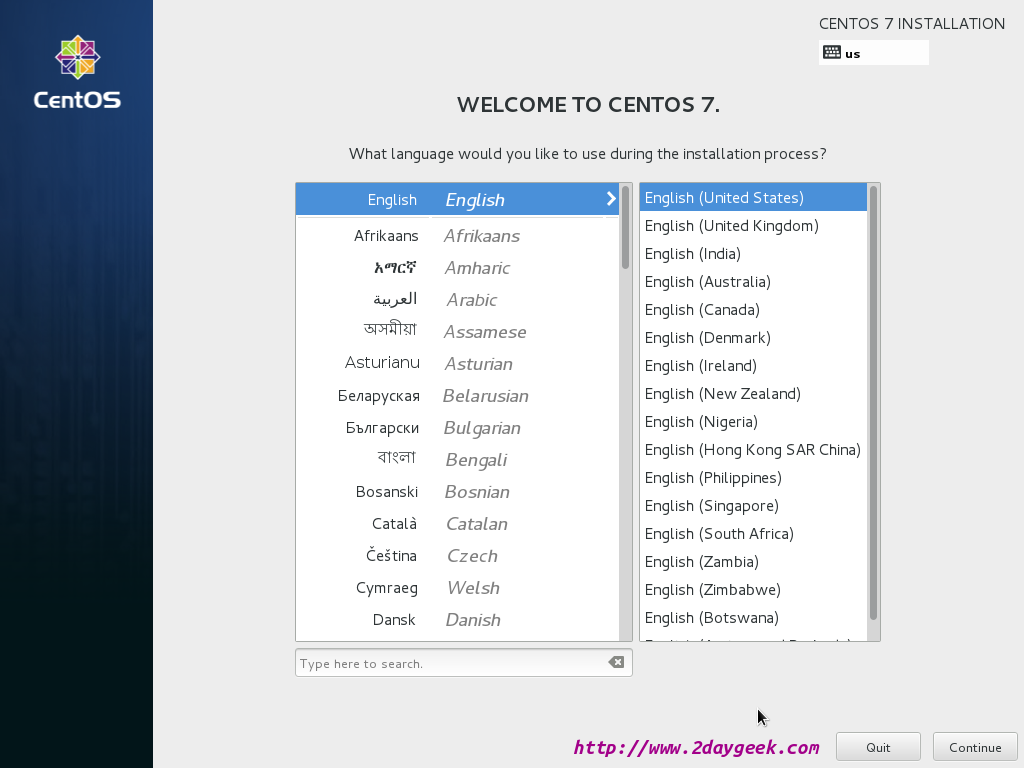

Welcome screen and Choose your prepared language, then hit Continue.
centos-7-desktop-installation-steps-with-screenshots-3a

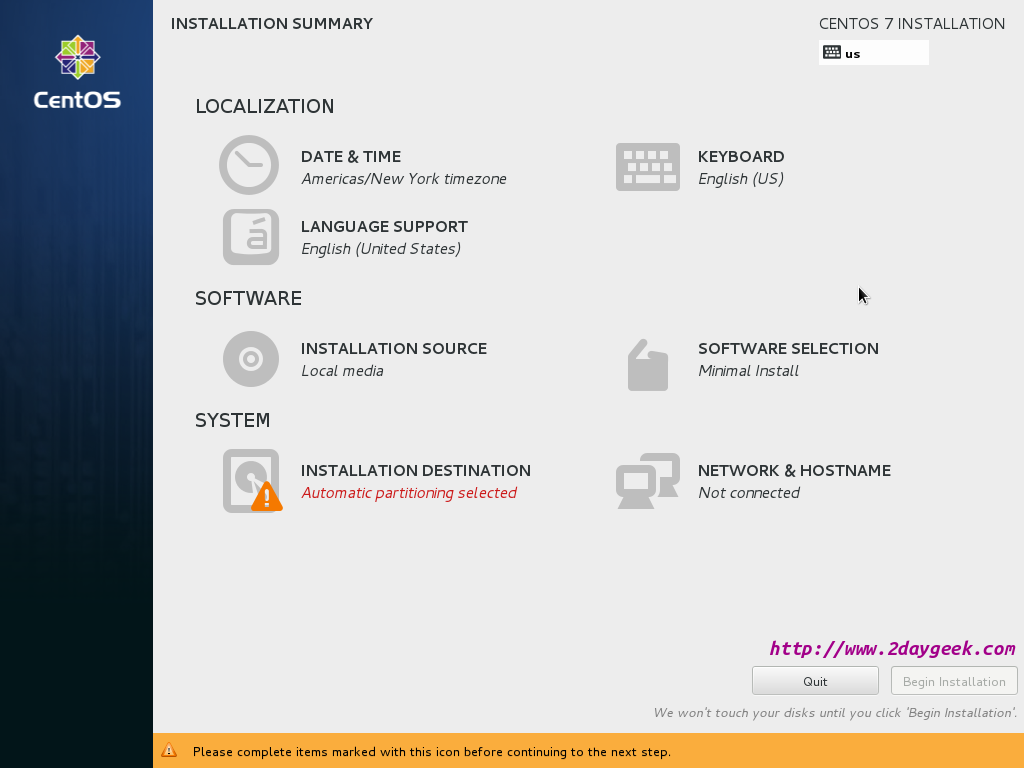

Installation SummaryIn Installation Summary steps you will complete 90% of process. So make sure all the option you need to choose properly such as Date & Time, Keyboard, Language support, Installation source, Software selection, Installation destination and Network & hostname.
centos-7-desktop-installation-steps-with-screenshots-4a

2) Date & Time Selection

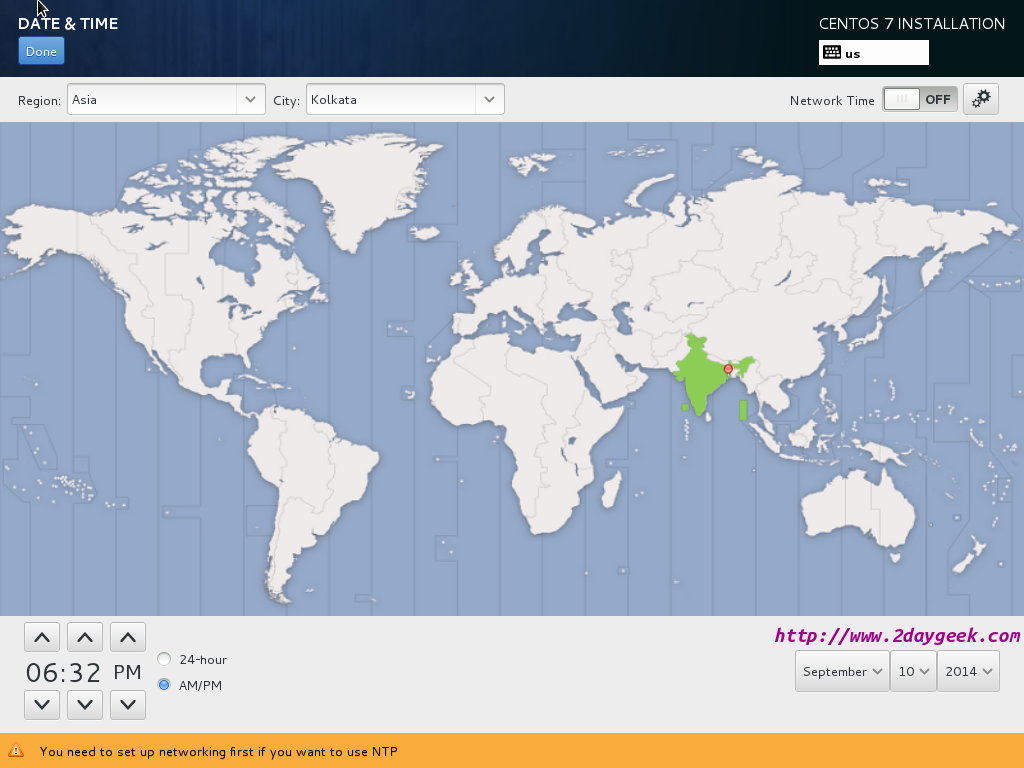

Choose your location (Your country) to set your time zone and date, then hit Done which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-5a

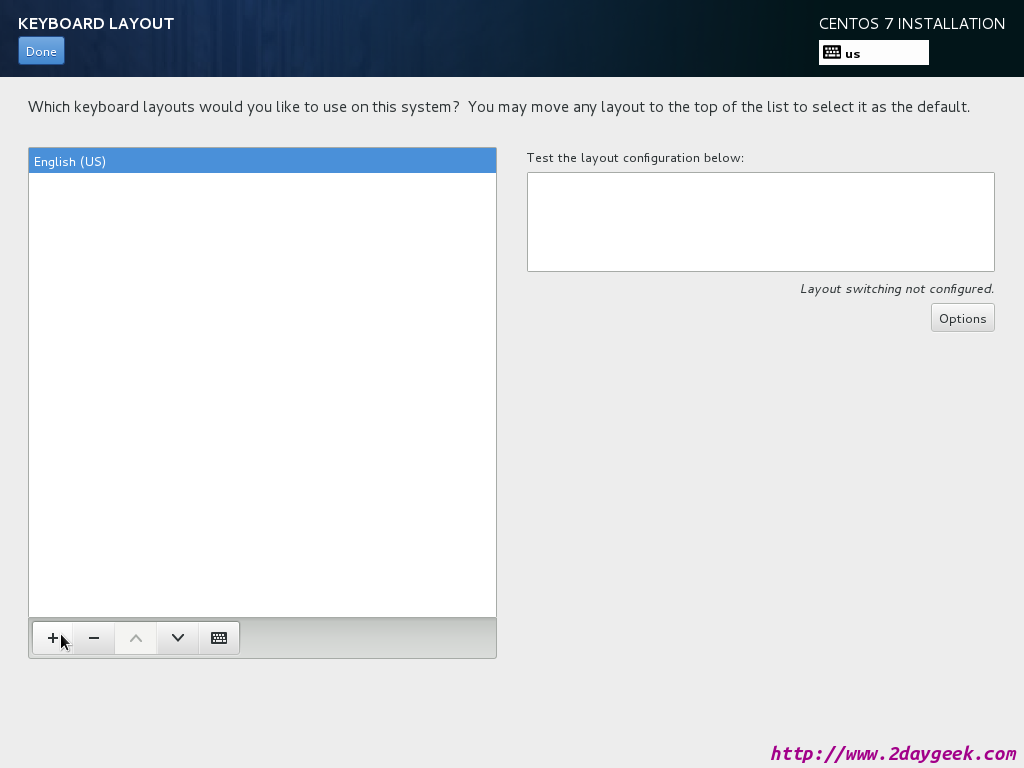

3) Keyboard layout Selection

Choose your preferred Keyboard layout to set default one, then hit Done which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-6a

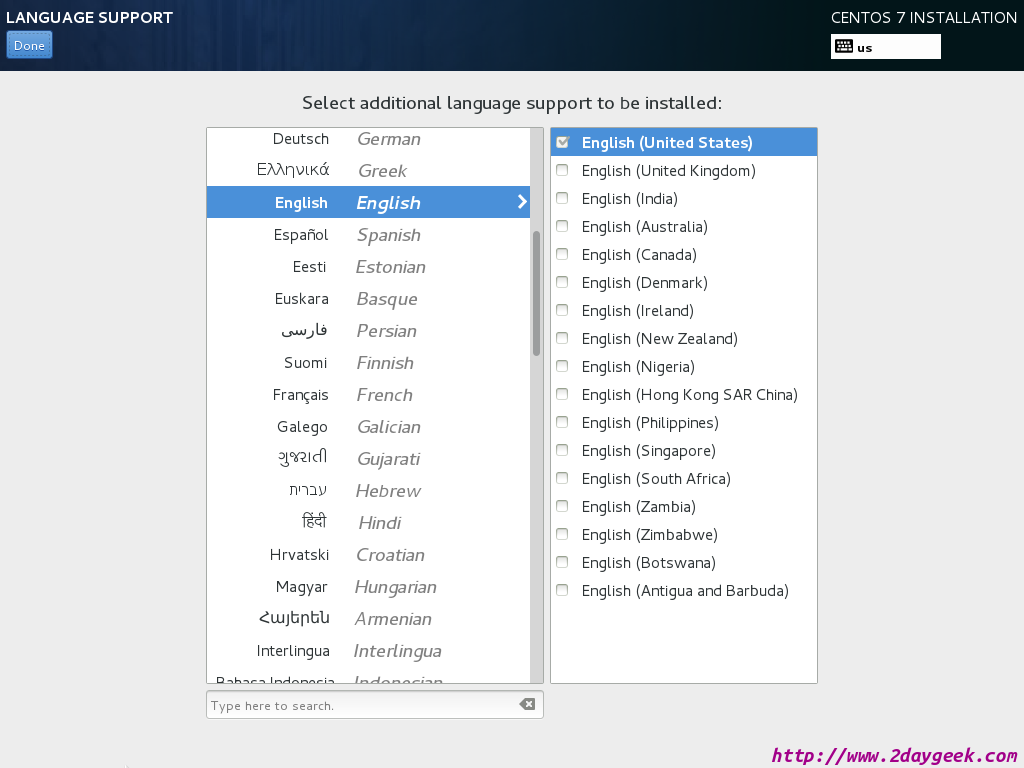

4) Language

Choose your prepared language to set default one, then hit Done which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-7a

5) Installation source

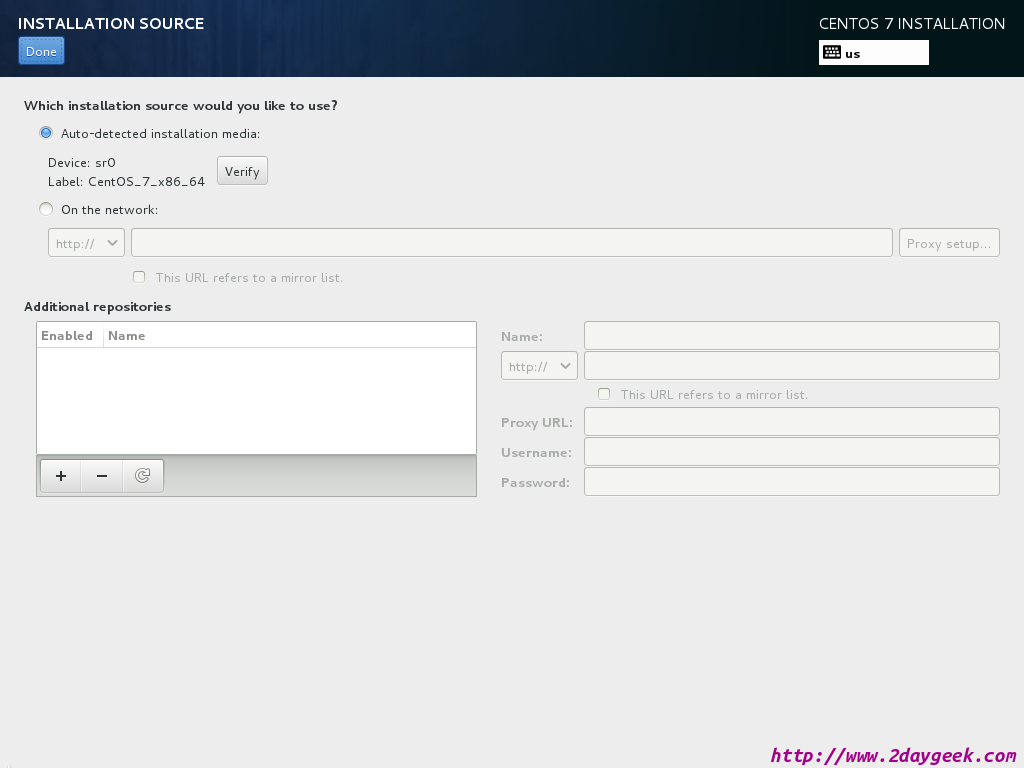

By Default its chooses the Auto-detected installation media, so just verify it, then hit Done which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-8a

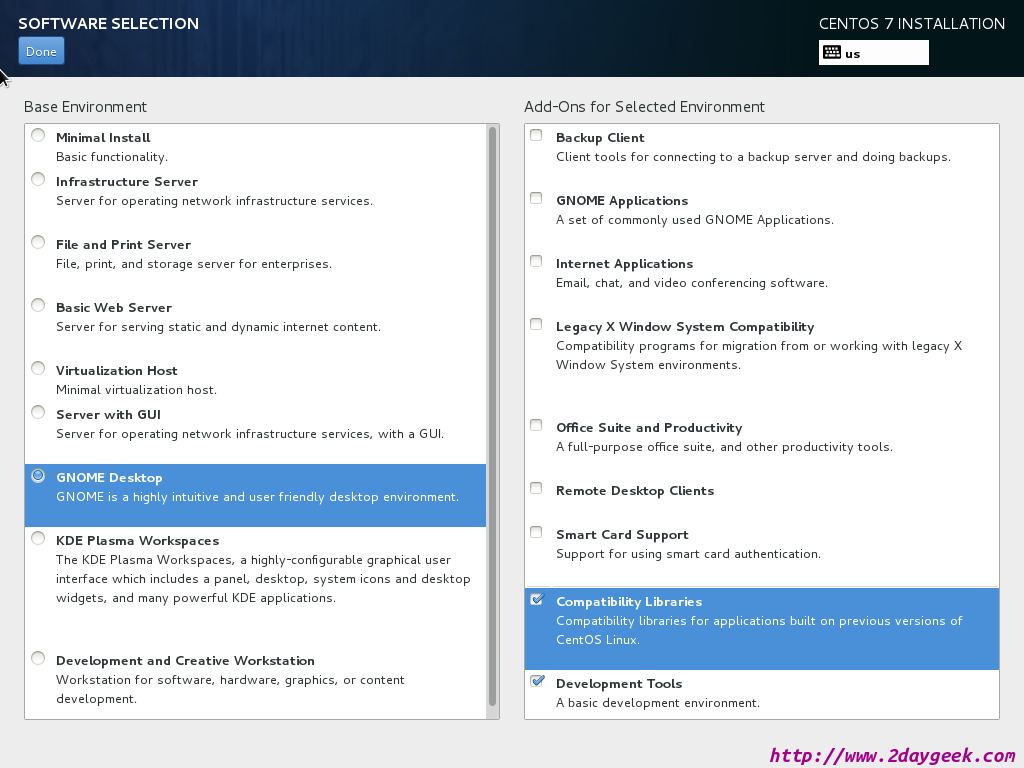

6) Software selection

This is important step-1 for you because whether you are going to install (Desktop or Server) Edition. Choose your option properly, then hit Done which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-9a

7) Installation Destination

This is important step-2 for you. If you choose Automatically configure partition based on your available disk it will create three partition and one major partition (/root, /boot & /swap). In this scenario /home partition is not separated one and it was comes under /root partition. Its not recommended one and highly RISK. So i would advise you to create the partition manually by following the below steps.
centos-7-desktop-installation-steps-with-screenshots-10a

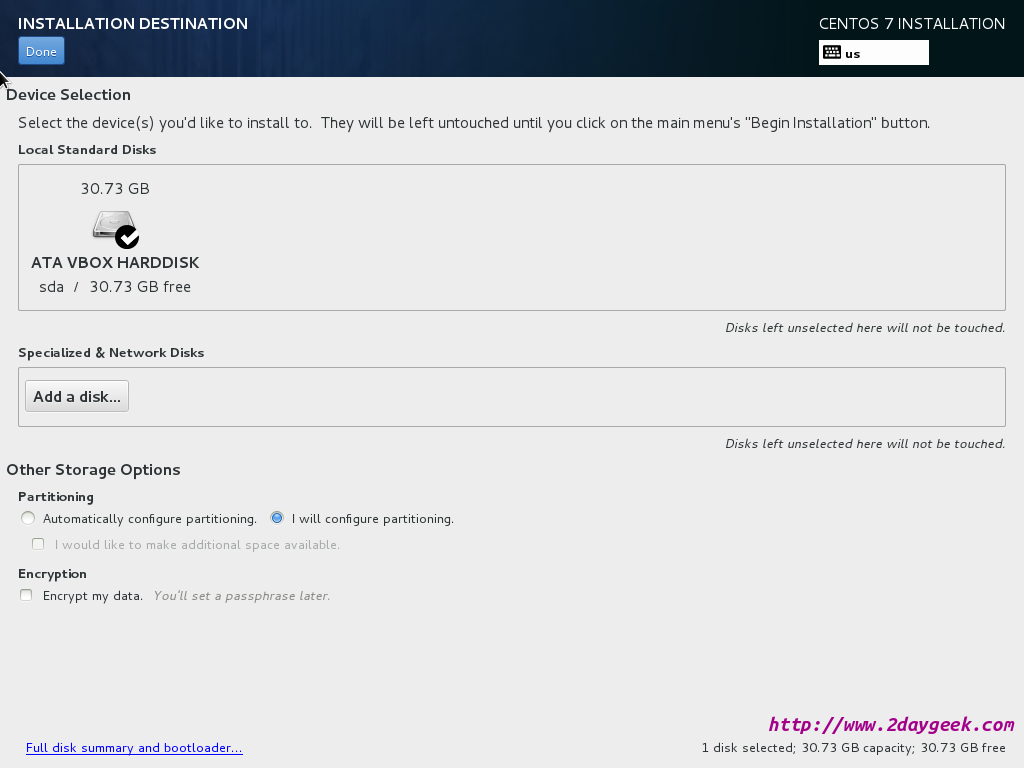

Choose Second radio button I will configure partitioning. Then hit Done which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-11a

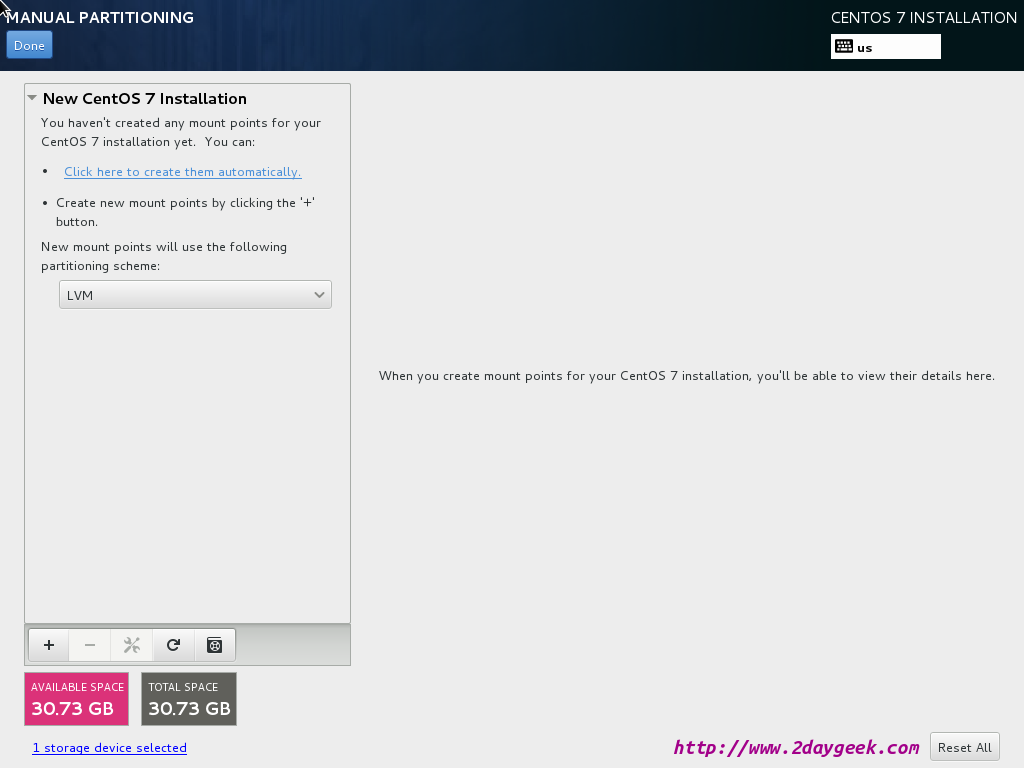

Choose the partition Scheme, Then hit Done which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-12a

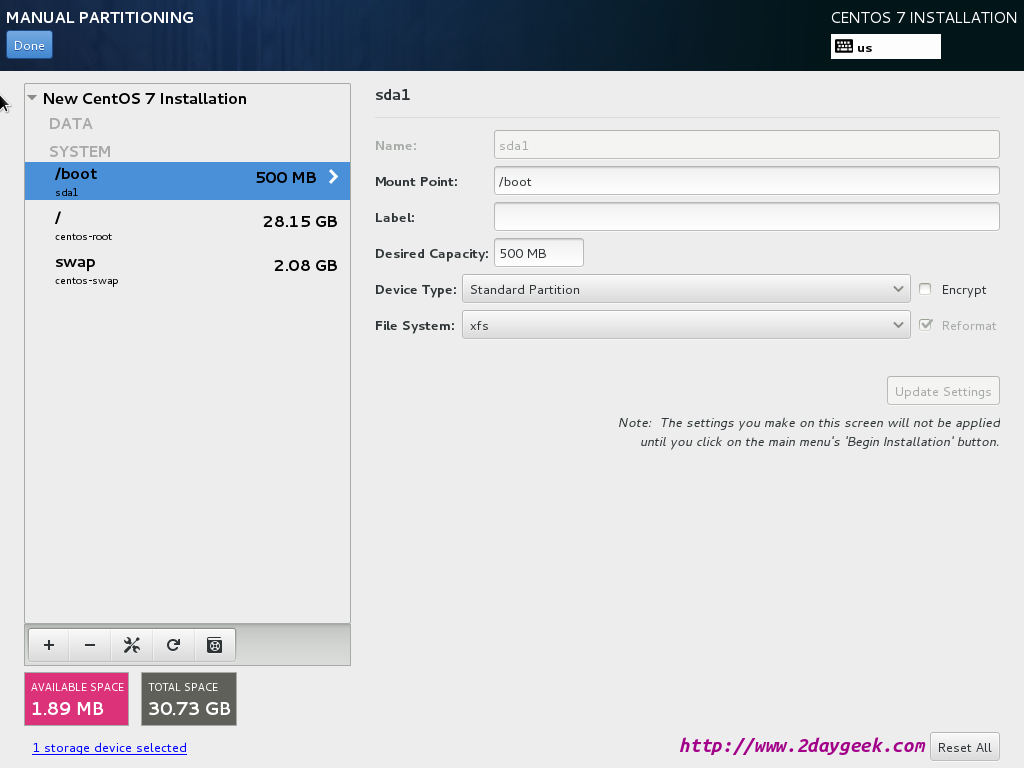

See the Default mount point size which was assigned by system itself and there is no /home mount point. It seem’s /root mount point took remaining spaces.
centos-7-desktop-installation-steps-with-screenshots-13a

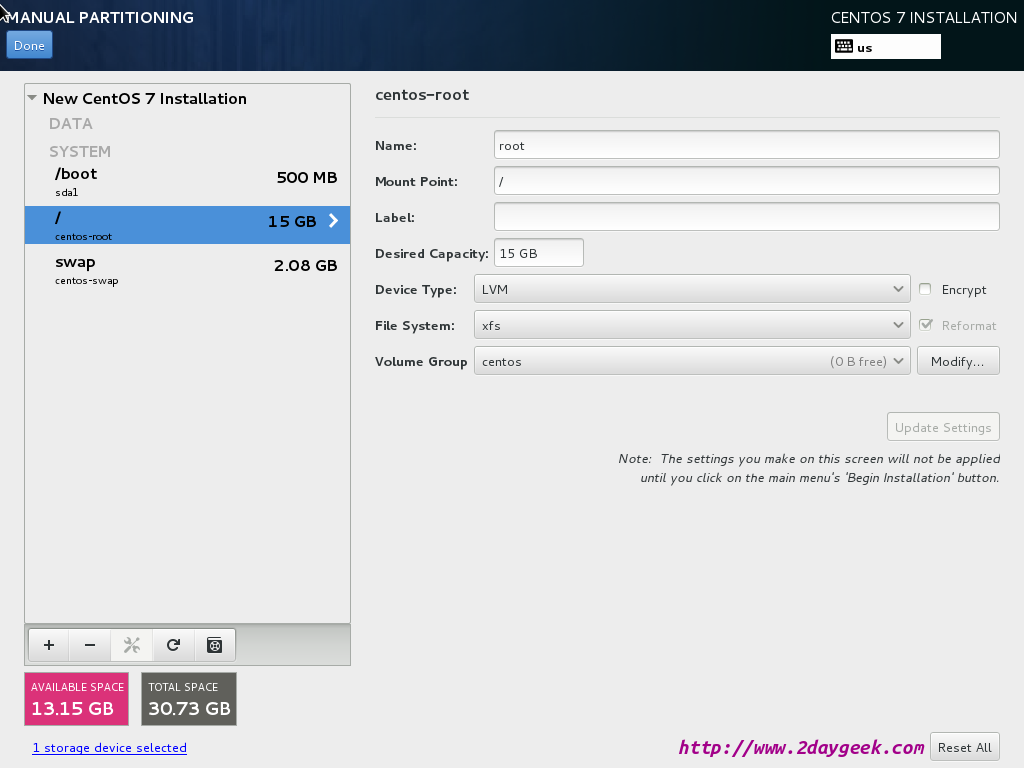

Resizing /root mount point. Here I’m going resize the root mount point from 28.15GB to 15GB. Choose the root mount point and enter your new described size, then hit Update Settings.
centos-7-desktop-installation-steps-with-screenshots-14a

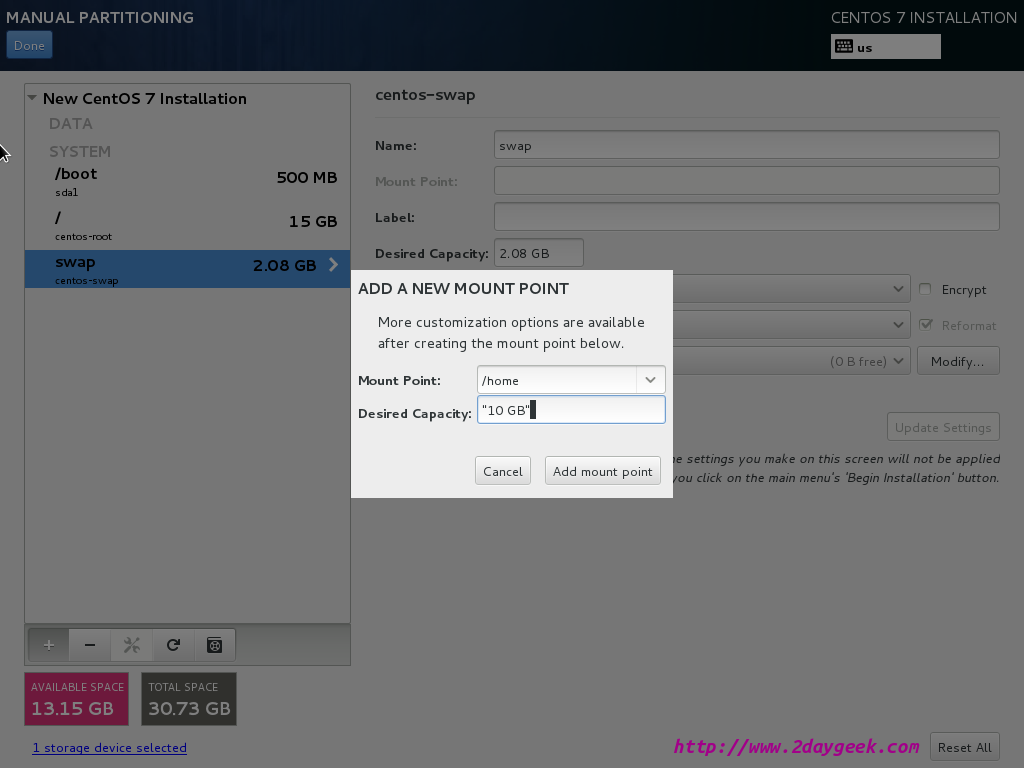

Adding /home mount point. Click the plus (+) button which is showing in leftmost bottom and it will pop-up new window like below. Choose mount point name and capacity (values should be “disk space GB”), then hit Add mount point button to mount it.
centos-7-desktop-installation-steps-with-screenshots-15a

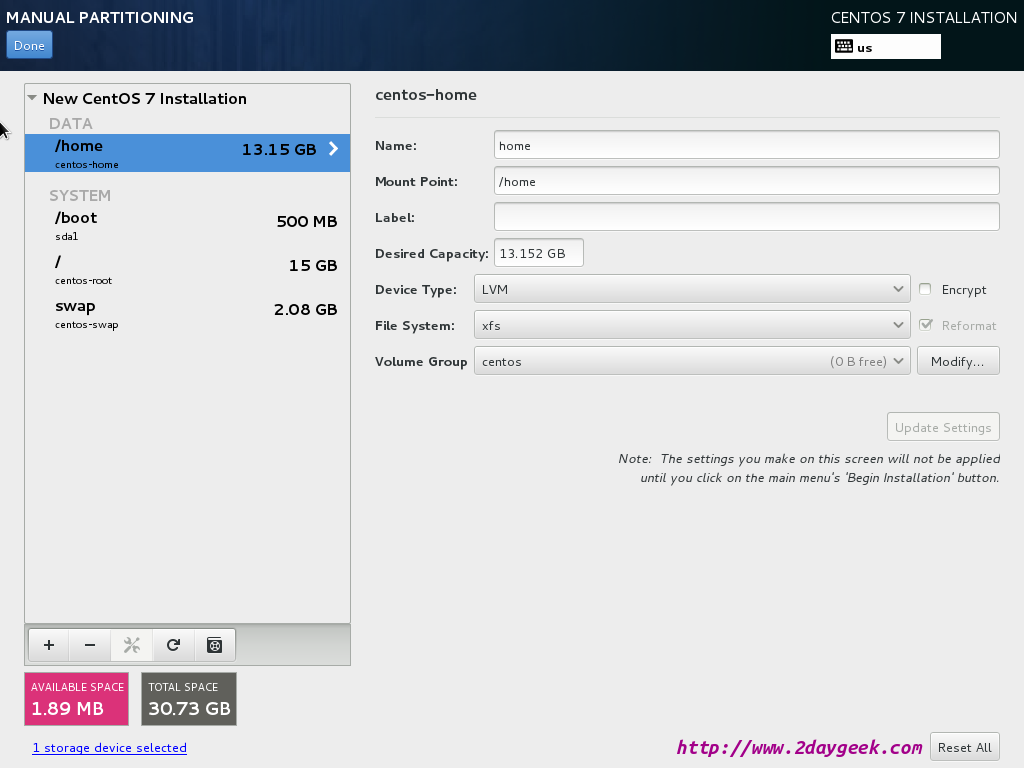

New mount point added, then hit Done button which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-16a

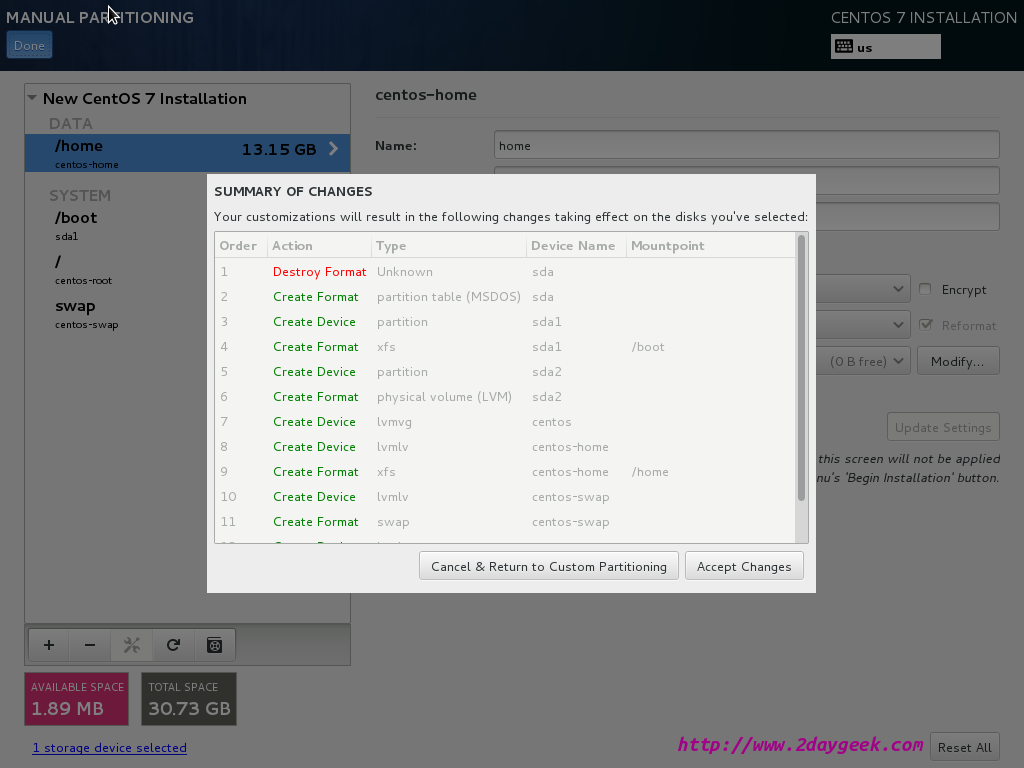

Accept the summary of changes that’s it.
centos-7-desktop-installation-steps-with-screenshots-17a

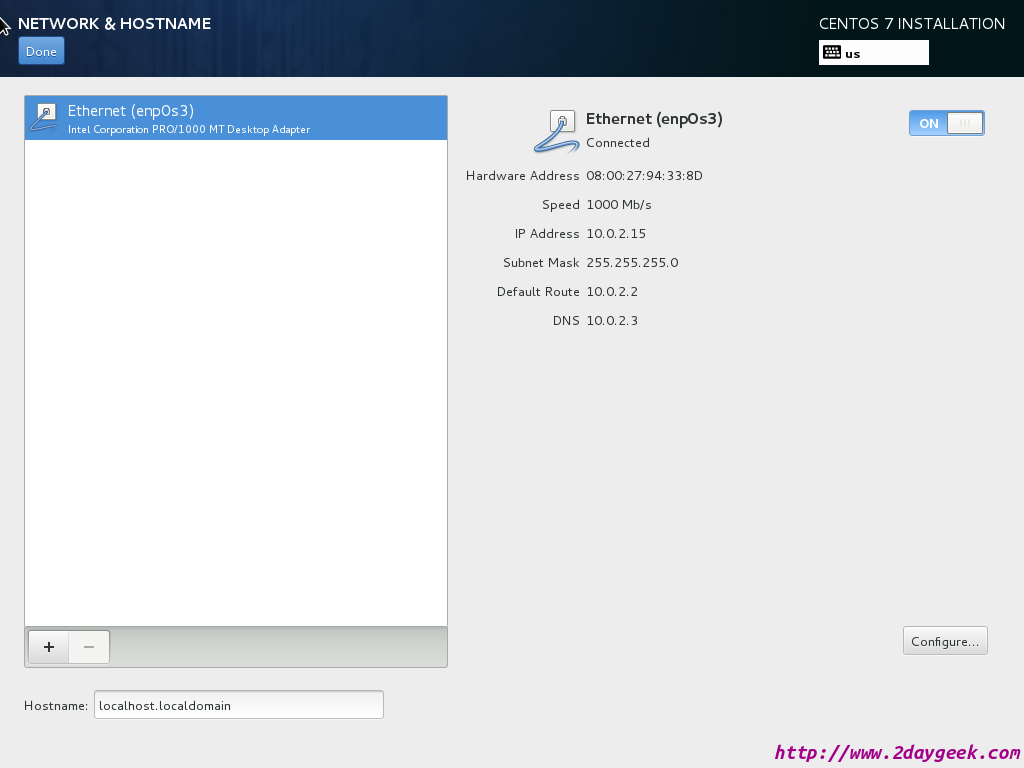

8) Network & Hostname selection

Enable your network settings and if you have static IP click Configure option to set properly and add your Hostname, then hit Done Button which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-18a

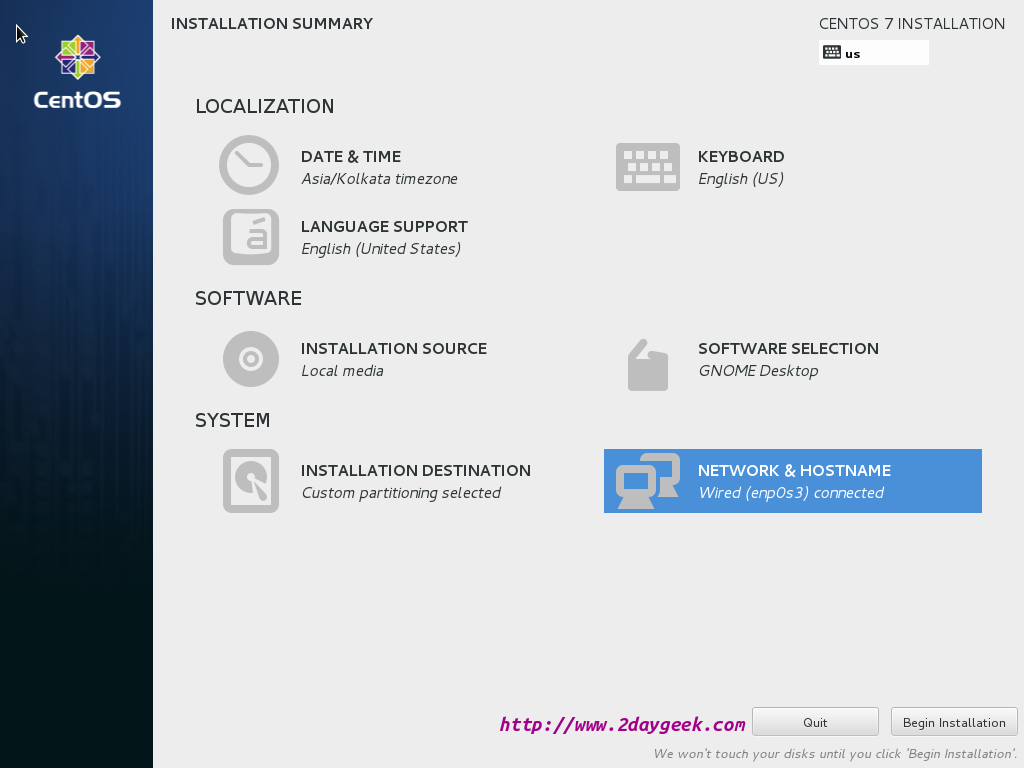

9) Initiate CentOS 7 Installation

Now you have configured almost 90% of configuration, then hit Being Installation Button to initiate the CentOS 7 installation.
centos-7-desktop-installation-steps-with-screenshots-19a

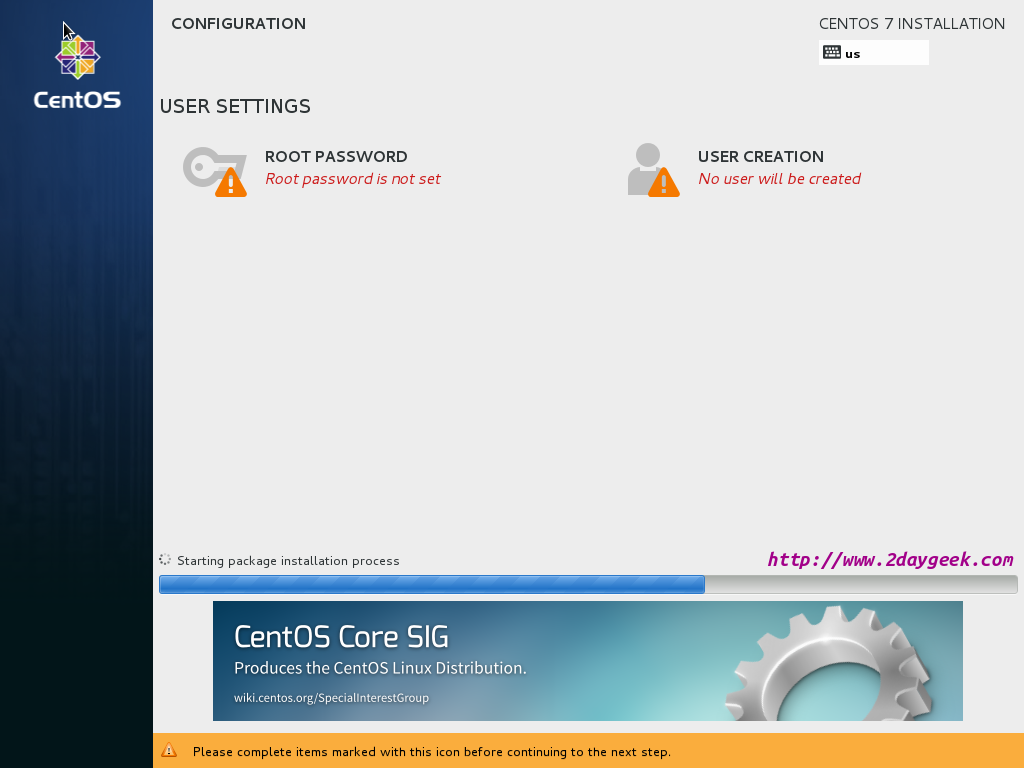

Installation process initiated successfully.
centos-7-desktop-installation-steps-with-screenshots-20a

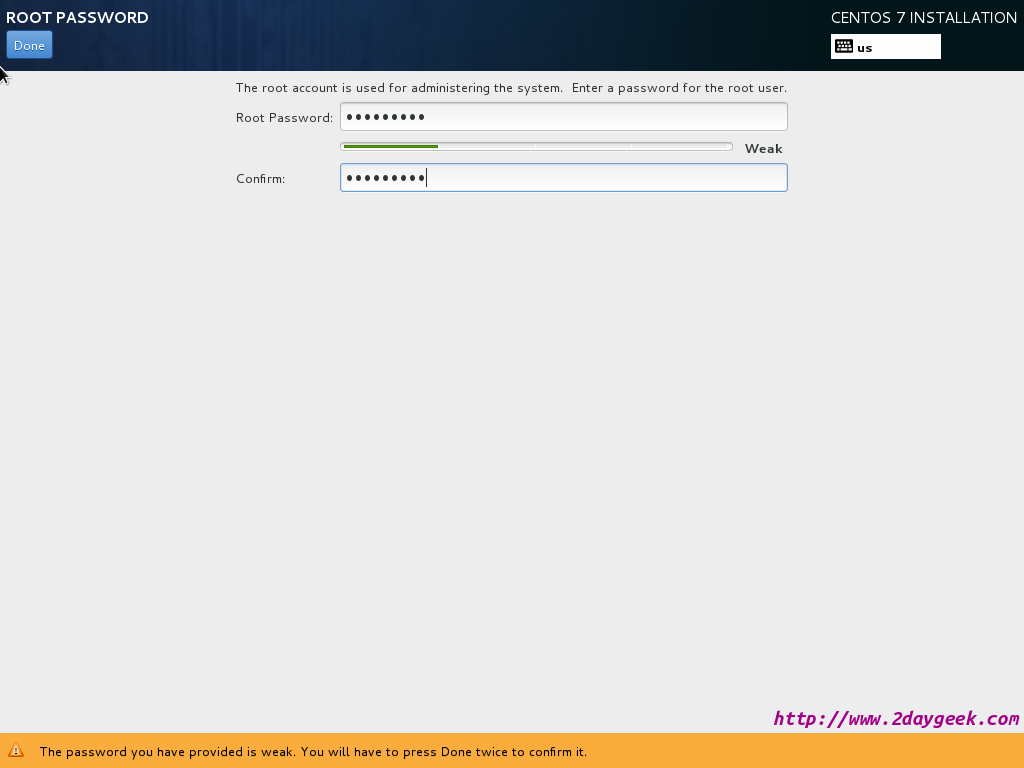

10) Setting up root password

Its time to setup your root password, then hit Done Button which is in topmost left.
centos-7-desktop-installation-steps-with-screenshots-21a

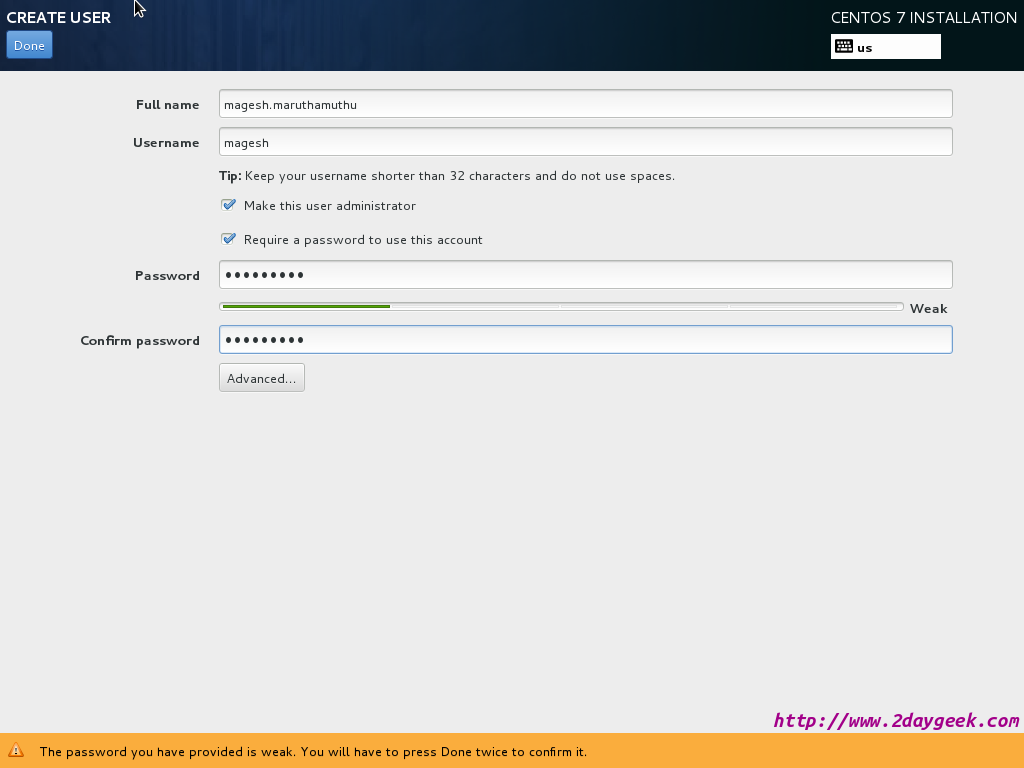

11) Create new user and password

Its time to create new user and password on your system, then hit Done Button which is in topmost left. First need to enter FULL Name of the new user.
centos-7-desktop-installation-steps-with-screenshots-22a

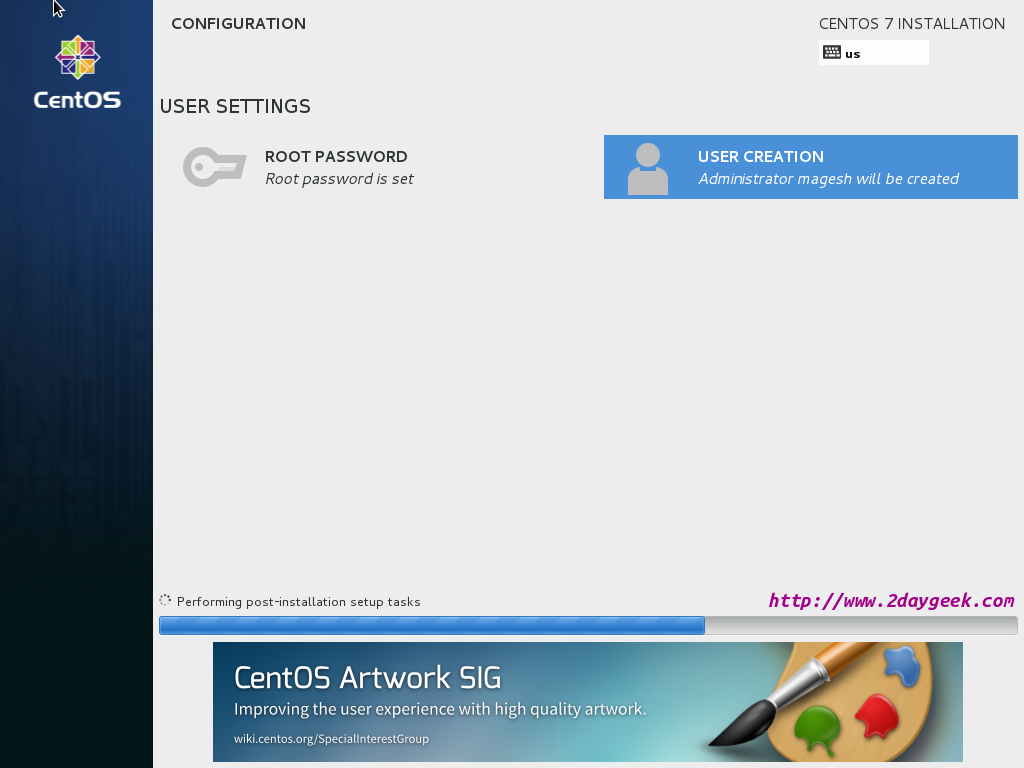

12) Installation process is on-going

CentOS 7 Installation process is on-going and it will take shot while to complete the installation.
centos-7-desktop-installation-steps-with-screenshots-23a

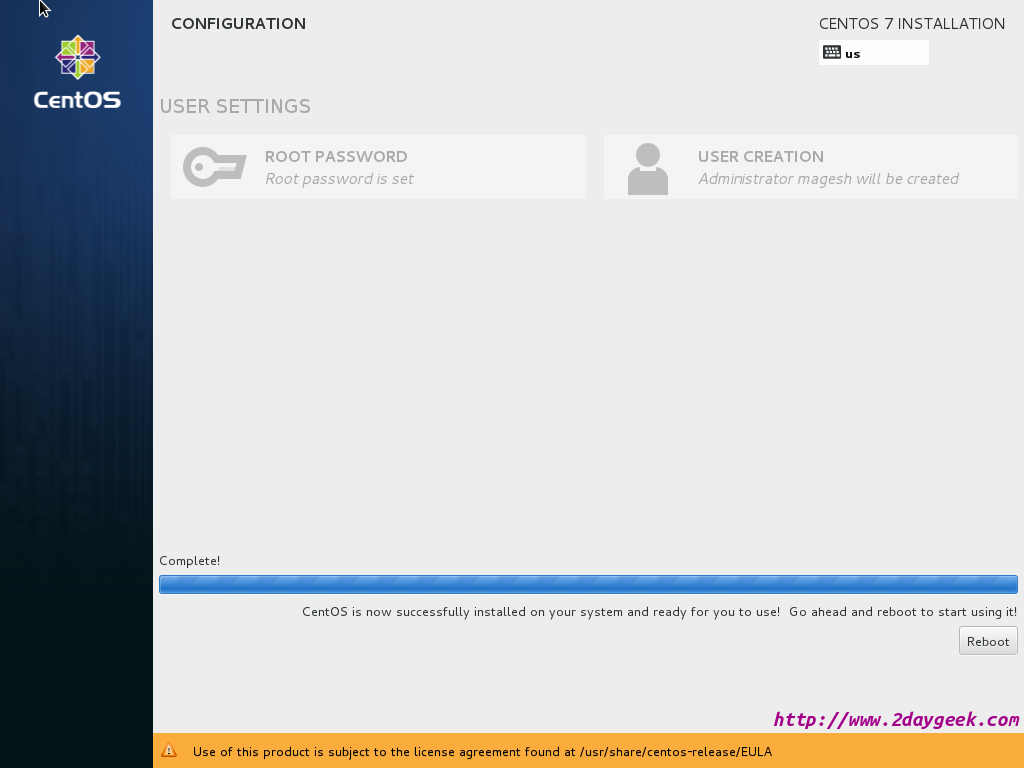

13) Installation got over

CentOS 7 successfully installed on your system and ready for use, go ahead and Reboot your system.
centos-7-desktop-installation-steps-with-screenshots-24a

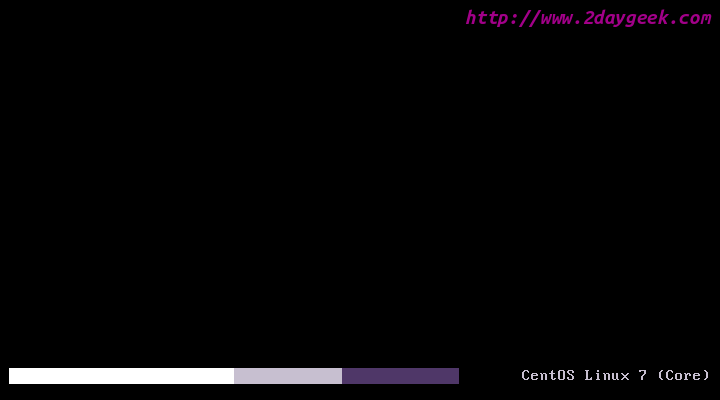

14) System rebooting

System rebooting wait a while for Initial Setup screen.
centos-7-desktop-installation-steps-with-screenshots-25a

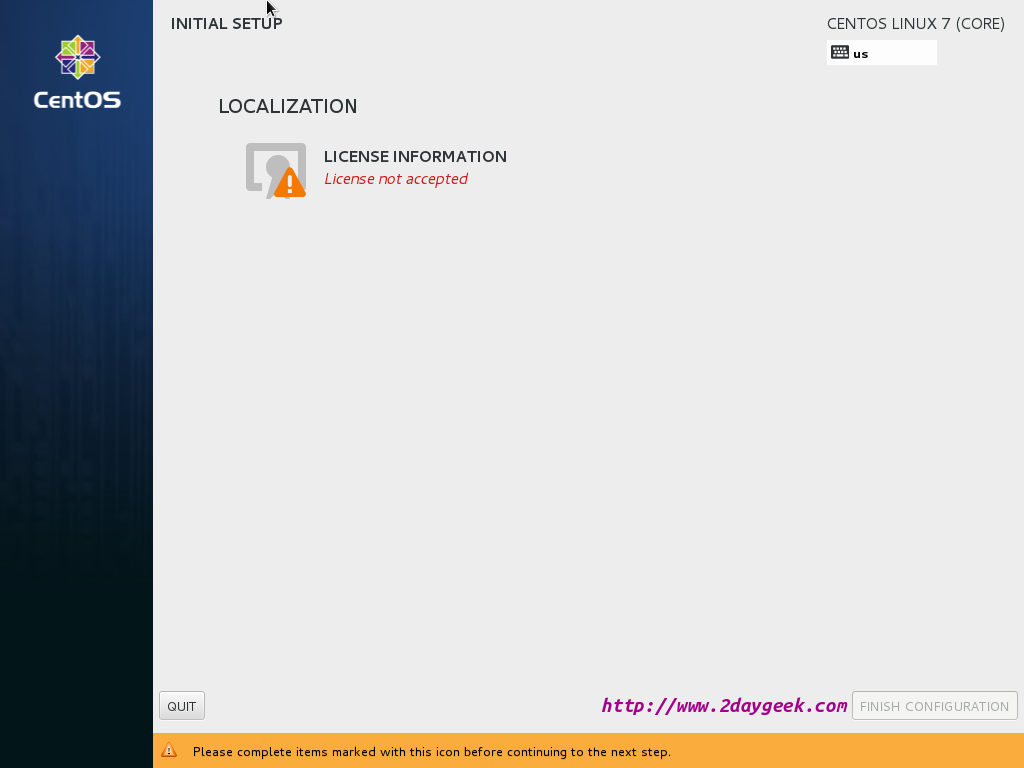

15) License Information

Accept the license information, then hit Finish Configuration Button.
centos-7-desktop-installation-steps-with-screenshots-26a

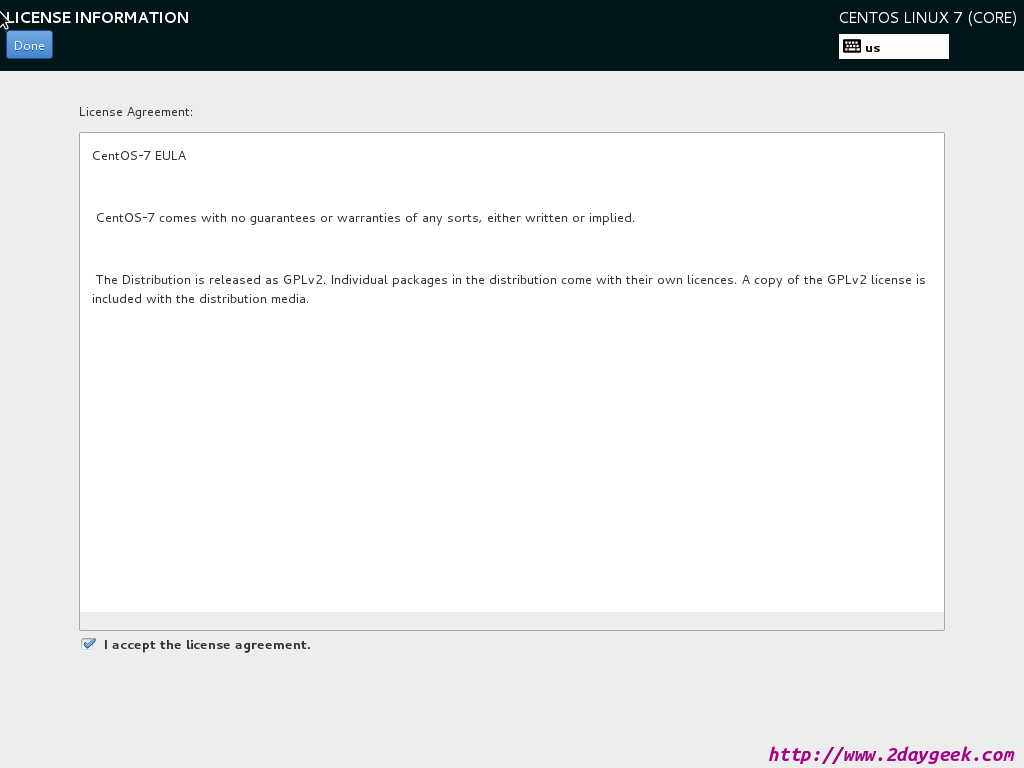

Accepting License Agreement.
centos-7-desktop-installation-steps-with-screenshots-27a

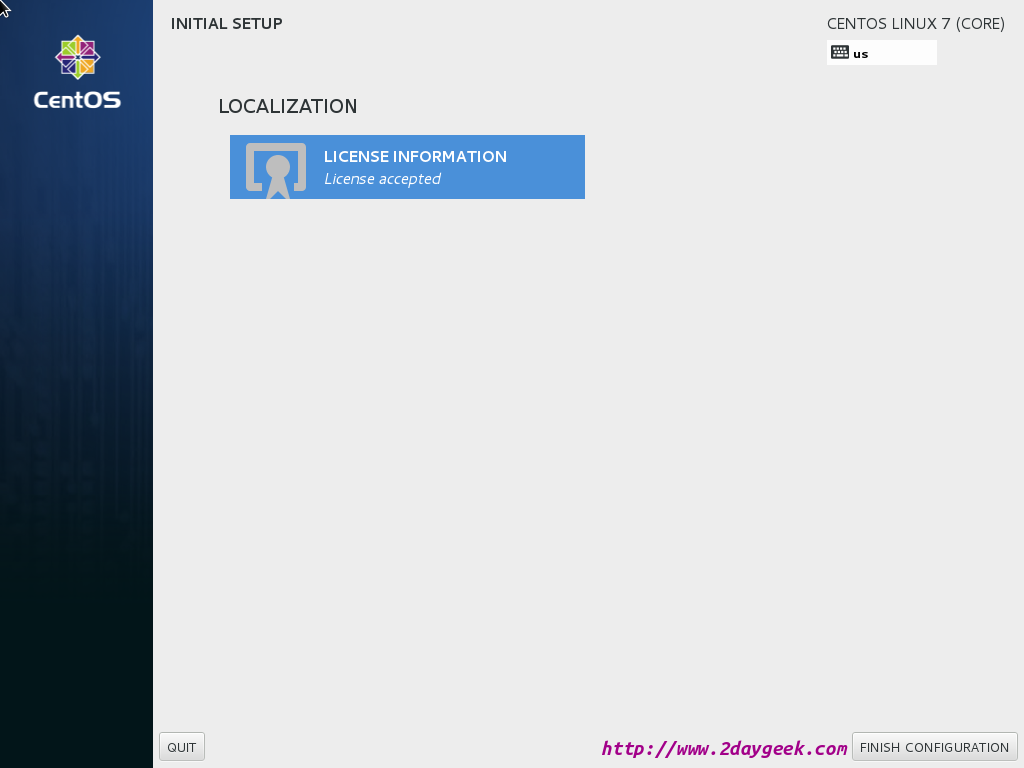

Finishing Configuration.
centos-7-desktop-installation-steps-with-screenshots-28a

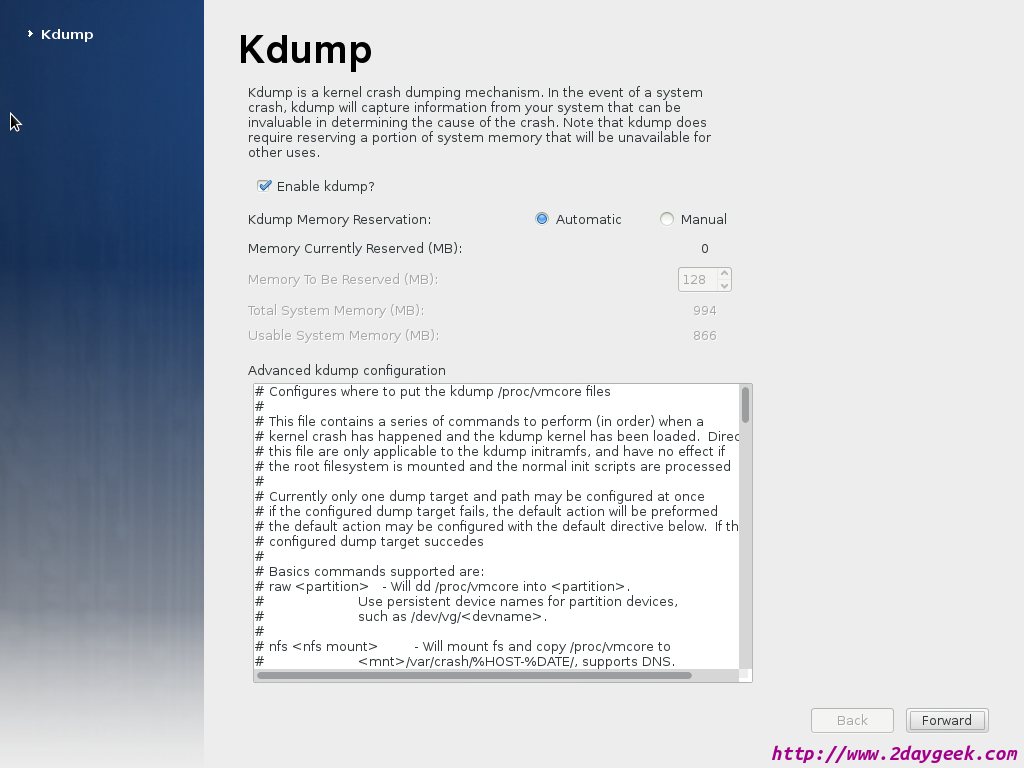

16) KDUMB Setup

Enabling kdumb In cause your system got crash kdumb capture the information which will help you to identify the root causes of issue, then hit Forward Button.
centos-7-desktop-installation-steps-with-screenshots-29a

17) CentOS 7 GNOME Desktop login screen

Press your username and it will ask you to enter your password.
centos-7-desktop-installation-steps-with-screenshots-30a

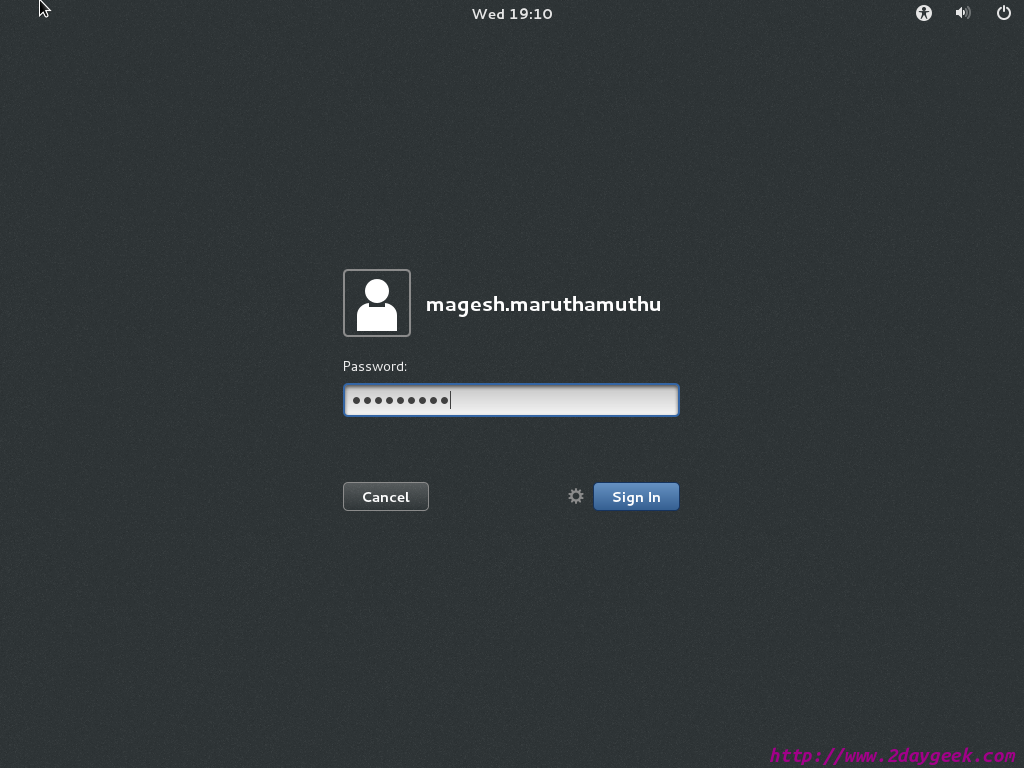

Enter your password and hit Sign In button to launch your Desktop.
centos-7-desktop-installation-steps-with-screenshots-31a

18) Gnome Initial Setup

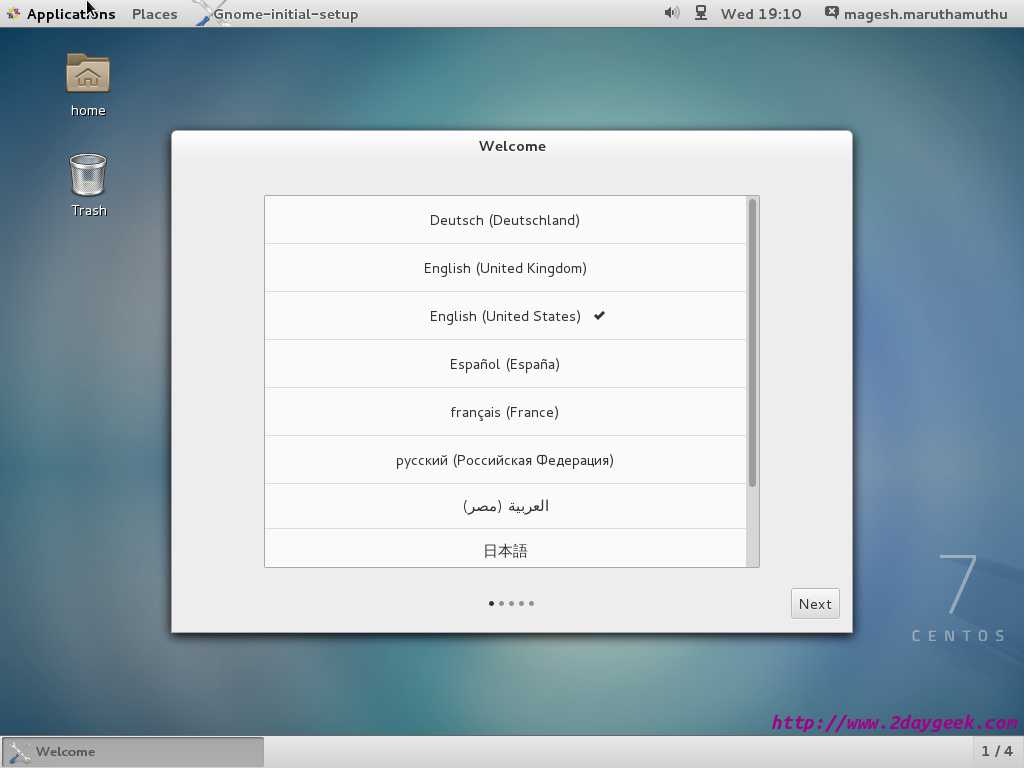

Gnome Initial Setup Welcome screen, then hit Next Button.
centos-7-desktop-installation-steps-with-screenshots-32a

19) Gnome Input Source

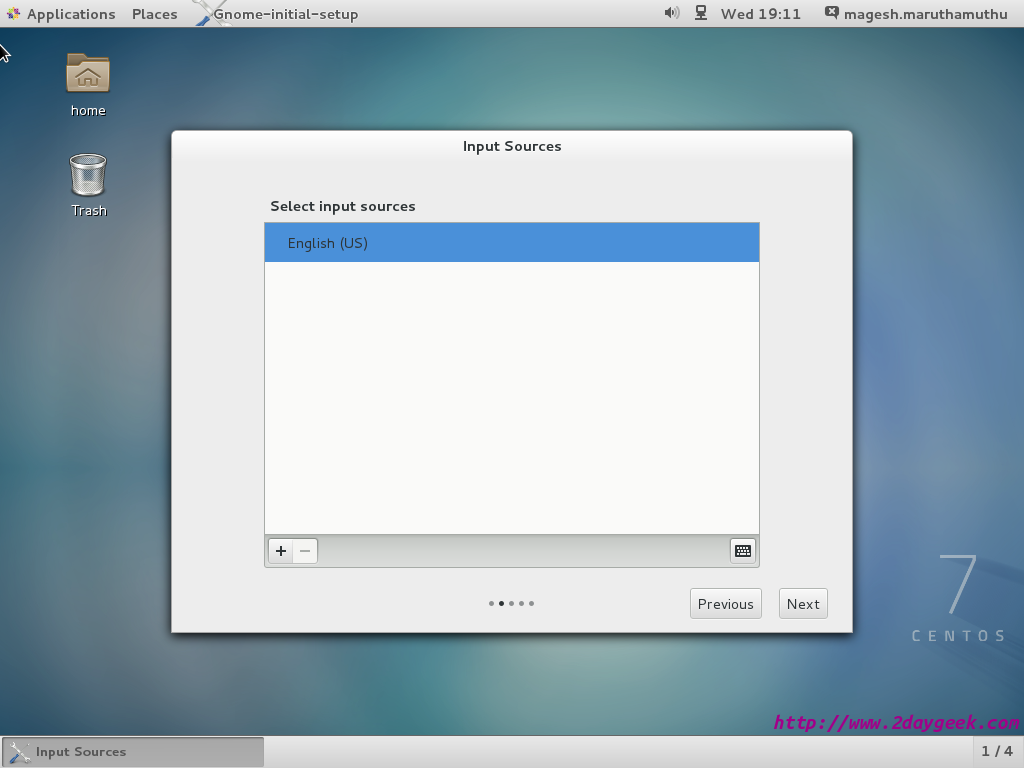

Choose Input Sources, then hit Next Button.
centos-7-desktop-installation-steps-with-screenshots-33a

20) Gnome Online Accounts

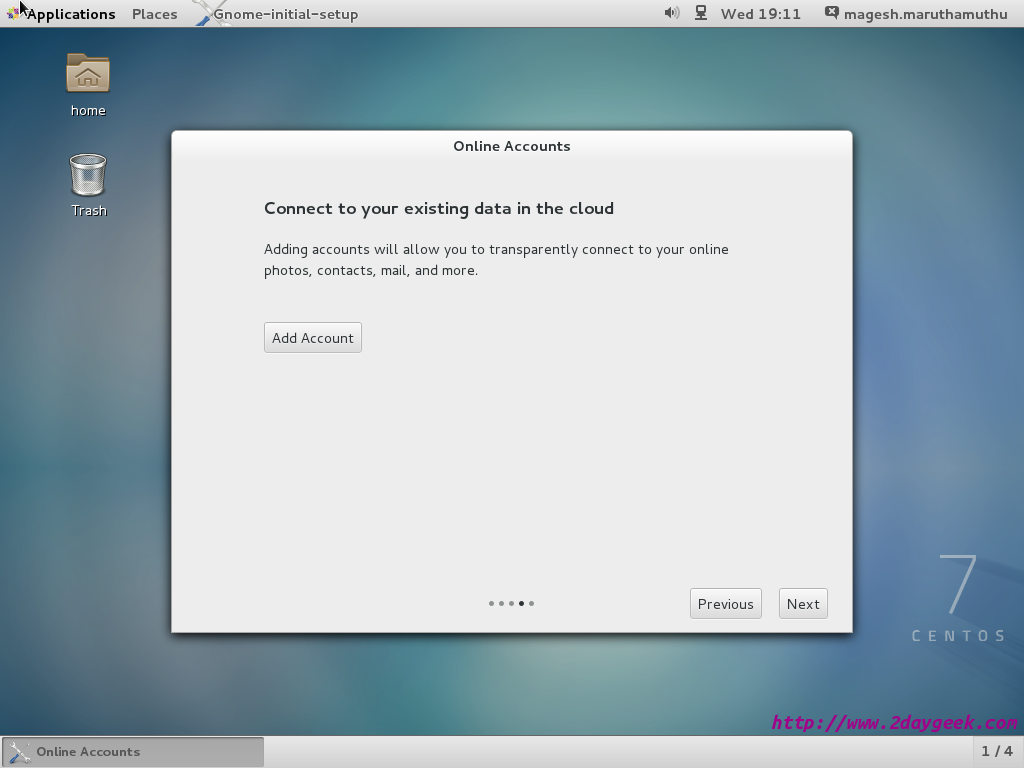

Adding online cloud account, then hit Next Button.
centos-7-desktop-installation-steps-with-screenshots-34a

21) Gnome Initial Setup completed

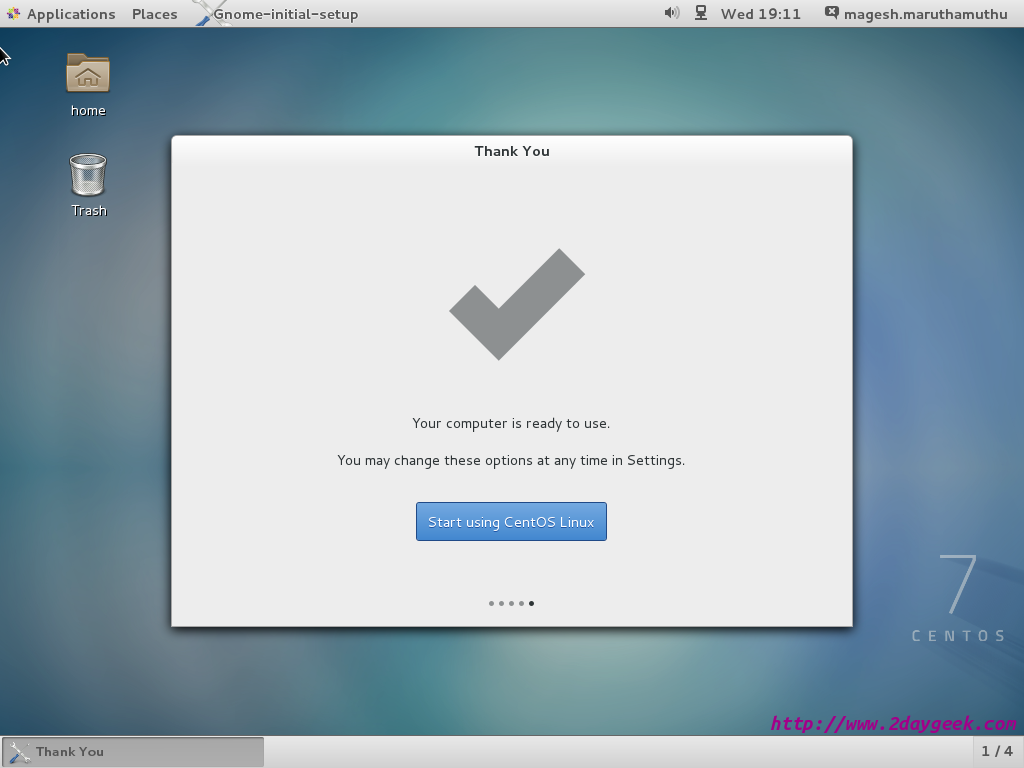

Gnome Initial Setup got completed and play with CentOS 7.
centos-7-desktop-installation-steps-with-screenshots-35a

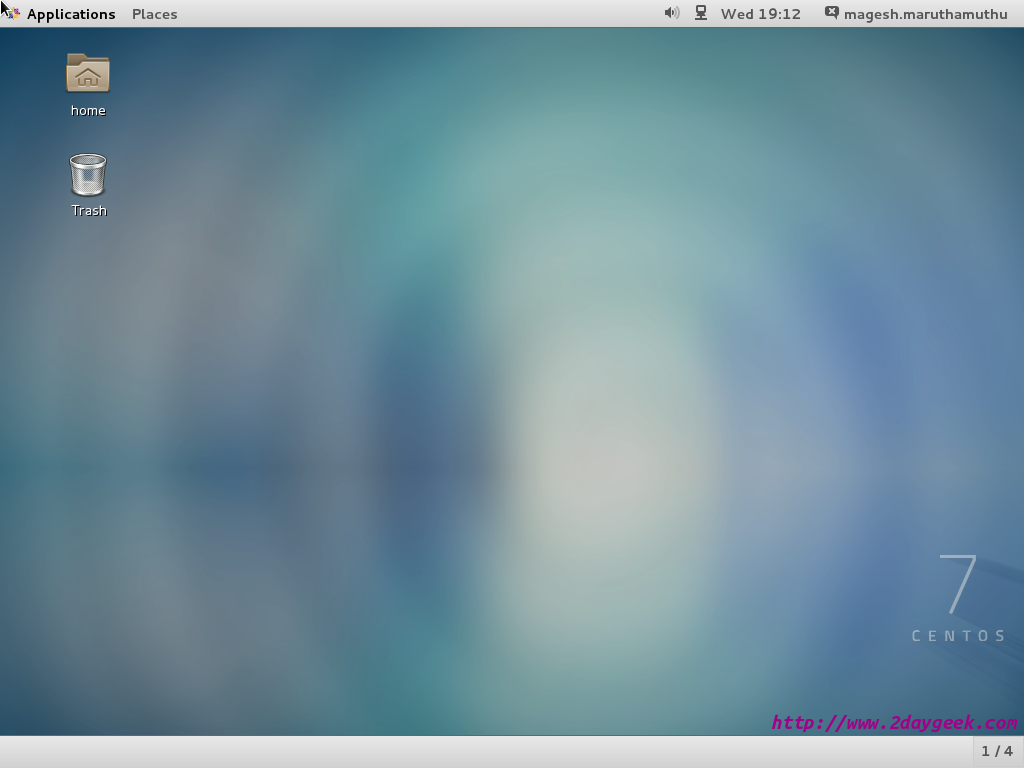

22) CentOS 7 Desktop screen

CentOS 7 Desktop screen shot.
centos-7-desktop-installation-steps-with-screenshots-36a

23) CentOS 7 Desktop screen with menu

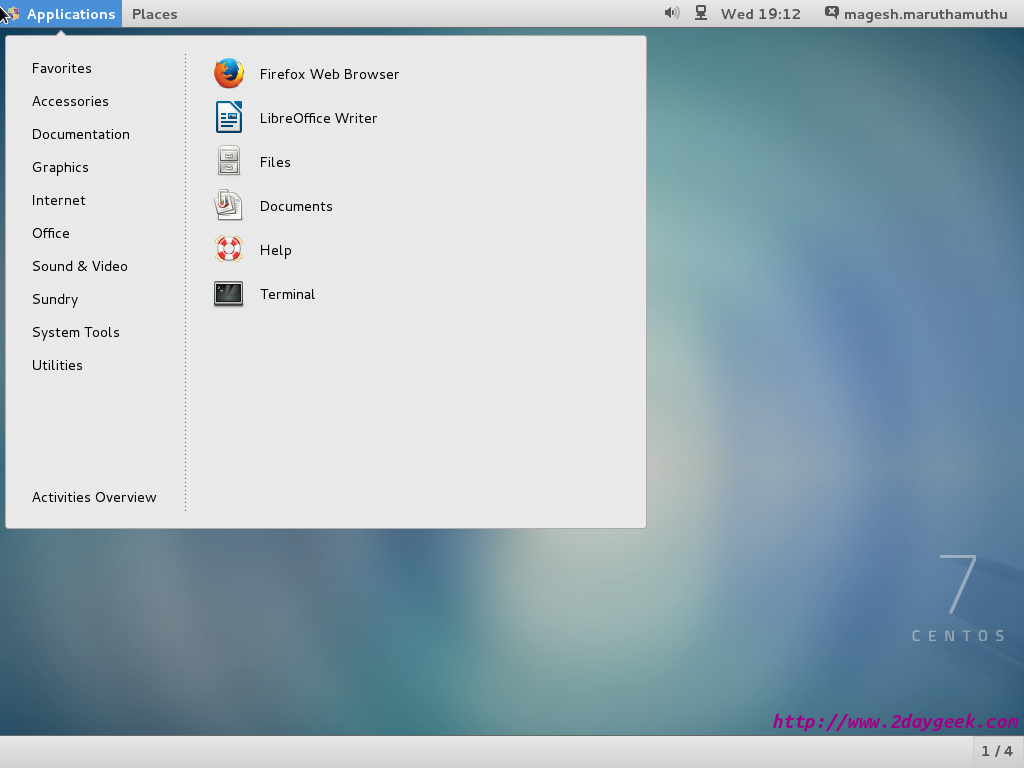

CentOS 7 Desktop screen shot with menu.
centos-7-desktop-installation-steps-with-screenshots-37a
We are preparing all articles in-depth to understand by all level/stage Linux administrators. If the article is useful for you, then please spend less than a minute to share your valuable comments in our commenting section.

Please stay tune with us…Good Luck.
