Released Zabbix 3.0 LTS (Network Monitoring Tool) with new frontend design & lot’s of new features

Zabbix is an enterprise level monitoring tool which monitors the entire IT infrastructure such as server, network and devices. Zabbix is completely an opensource and its currently supporting all major linux distribution like Debian, Ubuntu & CentOS. Read about Zabbix 2.4 Installation, Zabbix 3.0 Installation on Debian based systems, Zabbix 2.4 Installation on RPM based system, Adding Zabbix Remote Linux Host, Adding Zabbix Remote Windows Host & Zabbix Upgrade 2.4 to 3.0. Its high performance, high availability & high capacity which is capable to manage 1000+ devices at a time is really commendable. One can manage everything using the normal web interface. Zabbix announced the latest release of Zabbix 3.0.0 version on February 16, 2016. Alternatively you can install other network monitoring tools such as Nagios, Cacti, Monitorix, Munin & Icinga2.

What’s new in Zabbix 3.0

  • Zabbix 3.0 comes with a completely new frontend design along with visual improvements
  • Users section has been split into User groups and Users
  • Audit and Notifications sections have been moved out of Administration and into Reports. Additionally, Audit has been split into Audit and Action log sections.
  • Encryption support added : Network communications between Zabbix components (server, proxies, agents and command-line utilities) now be encrypted if Zabbix is compiled with mbed TLS (PolarSSL), GnuTLS or OpenSSL library
  • Predictive trigger functions available via forecast() and timeleft()
  • New SMTP authentication options
  • Custom intervals (option to schedule checking interval as per your requirement)
  • Custom alert scripts (you can alter alert scripts message by passing new parameter)
  • All users in Zabbix can create private maps, screens and slide shows is possible
  • Exporting and importing value maps
  • Now possible to defining trigger dependencies as low-level discover
  • Multiple OID support in SNMP discovery
  • Graph improvements : Possible to view every minute status
  • Automated selection of host inventory mode
  • Bulk acknowledgement made more flexible
  • Running Zabbix daemons in foreground
  • Filtering options across several frontend sections have been improved further
  • User agent options in web monitoring
  • For detailed new features for zabbix 3.0

1) Prerequisites for Zabbix

You should install EPEL Repository For some dependency package & LAMP stack before proceeding Zabbix installation.

2) Install Zabbix repository

You can directly download the repository configuration package from Zabbix website based on your distribution and version.

Import Zabbix Signature
rpm --import http://repo.zabbix.com/RPM-GPG-KEY-ZABBIX

Zabbix repository For RHEL/CentOS/Oracle Linux 7
# rpm -ivh http://repo.zabbix.com/zabbix/3.0/rhel/7/x86_64/zabbix-release-3.0-1.el7.noarch.rpm

3) Install Zabbix Server

Run the below command to install Zabbix server with mysql and front-end web interface. While installing you need to give mysql root password to create zabbix database.

# yum install zabbix-server-mysql zabbix-web-mysql zabbix-agent zabbix-java-gateway

4) Editing PHP configuration for Zabbix frontend

Apache configuration file for Zabbix frontend is located in /etc/httpd/conf.d/zabbix.conf. By default everything is fine and you need to add your time zone.

# nano /etc/httpd/conf.d/zabbix.conf
php_value date.timezone Asia/Kolkata

Restart Apache Web Server in Systemd Systeme
# systemctl restart httpd.service
or
# systemctl restart httpd
or
# /bin/systemctl restart httpd.service

5) Create MySQL Database for Zabbix

Create MySQL database to use as Zabbix back end. Create database, database user name and password.

# mysql -u root -p

mysql> CREATE DATABASE zabbix CHARACTER SET UTF8;
mysql> GRANT ALL PRIVILEGES on zabbix.* to 'zabbix'@'localhost' IDENTIFIED BY 'YOUR_PASSWORD';
mysql> FLUSH PRIVILEGES;
mysql> quit

Import Zabbix Schema, images & data which is available under /usr/share/doc/zabbix-server-mysql-3.0.0 (Note : If you using any other version do modify according that)

# cd /usr/share/doc/zabbix-server-mysql-3.0.0
# zcat create.sql.gz | mysql -u root -p zabbix

Update MySQL Database password into /etc/zabbix/zabbix_server.conf file and uncommet it.

DBPassword=YOUR_PASSWORD

Allow Zabbix port in firewall

# firewall-cmd --permanent --add-port=10050/tcp
# firewall-cmd --permanent --add-port=10051/tcp
# systemctl restart firewalld

Start/Restart services

Start/Restart the service in Systemd Systeme
# systemctl start zabbix-server.service
# systemctl start zabbix-agent.service
# systemctl restart httpd.service
# systemctl restart mariadb.service
# systemctl enable zabbix-server.service
# systemctl enable zabbix-agent.service

6) Zabbix frontend installation

Navigate your browser to http://localhost/zabbix or http://IP-Address/zabbix or http://Domain-Name/zabbix and it will redirect to http://localhost/zabbix/setup.php

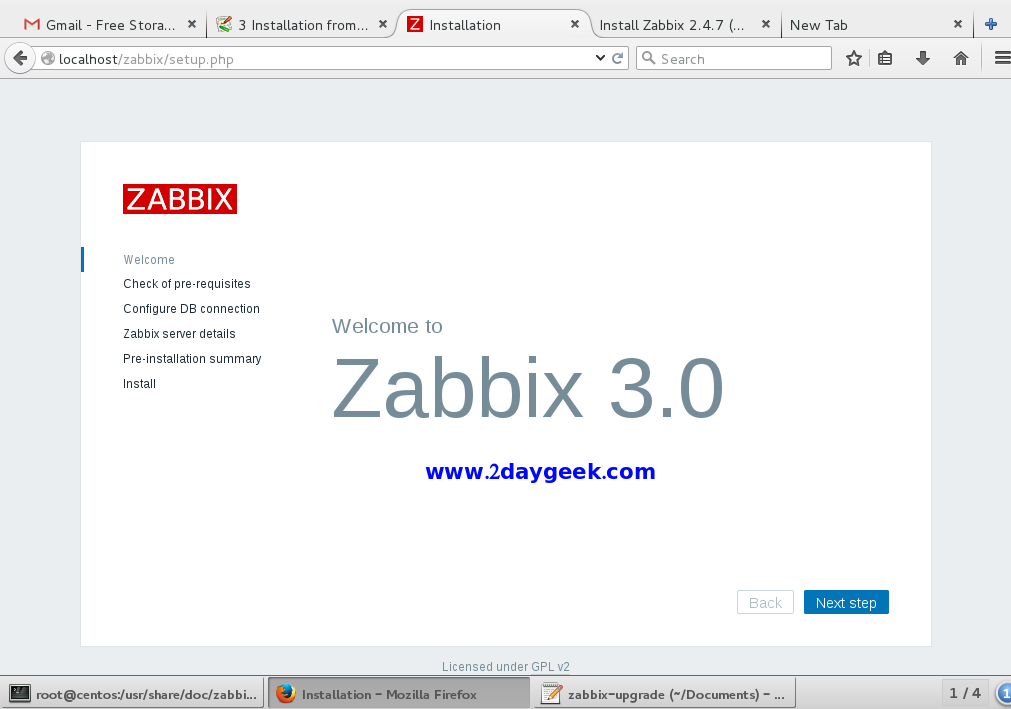

Zabbix 3.0 Welcome screen, Just hit NEXT to continue.

install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-1

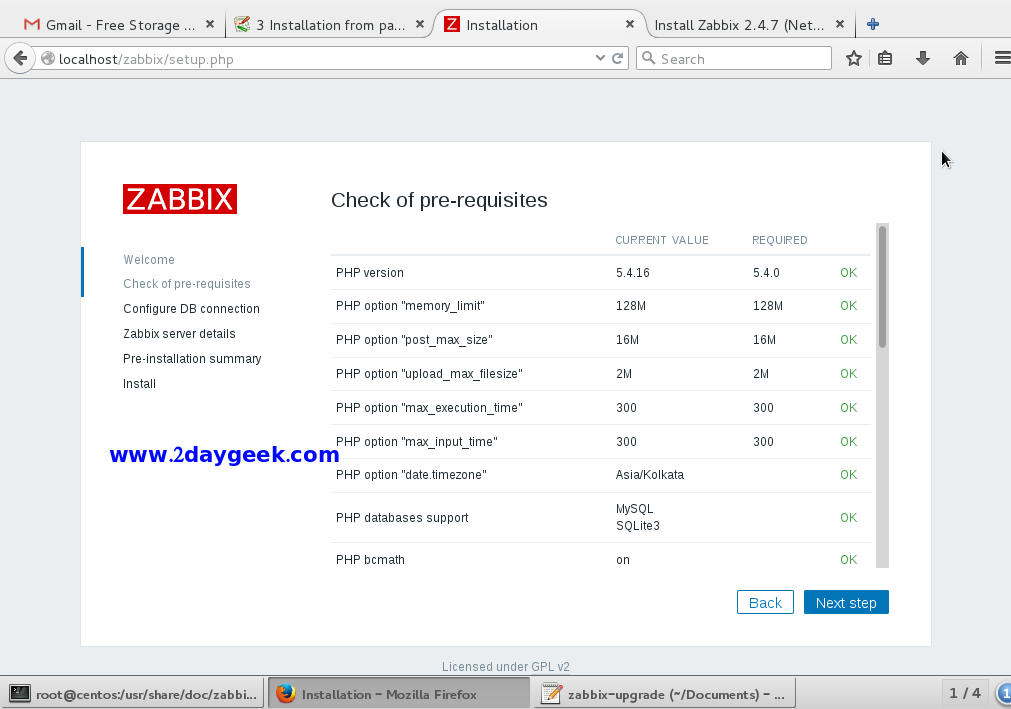

Checking all per-requisites packages which are available, then hit NEXT to continue.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-2

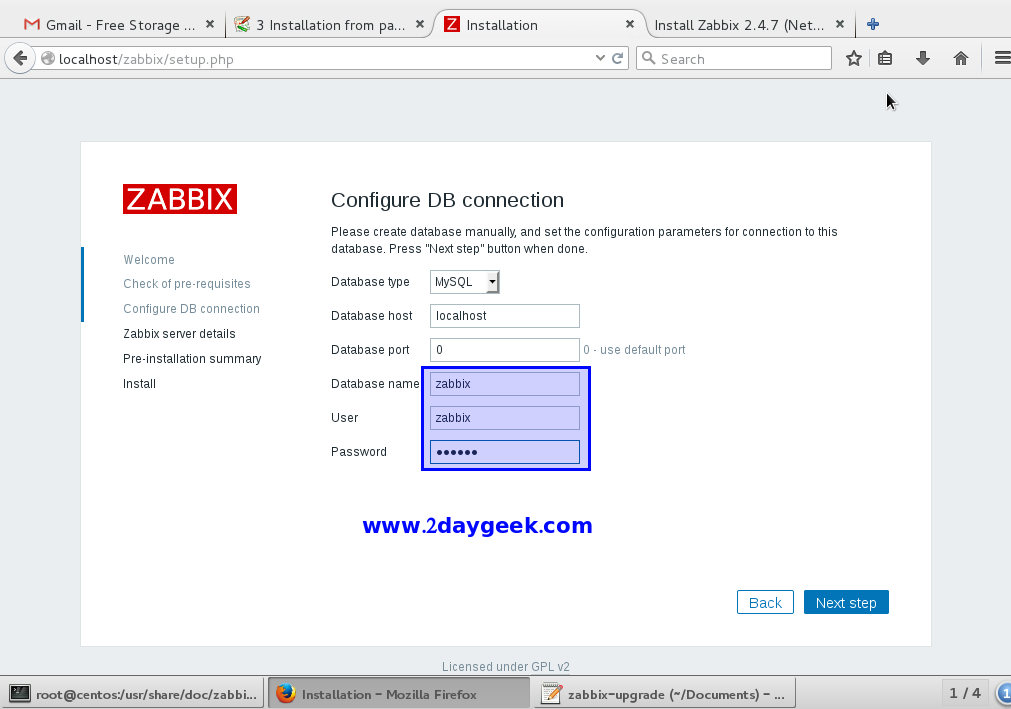

Enter Database details which you created also enter root database details, then hit Test Connection. If Test Connection is ok Click NEXT to continue.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-3

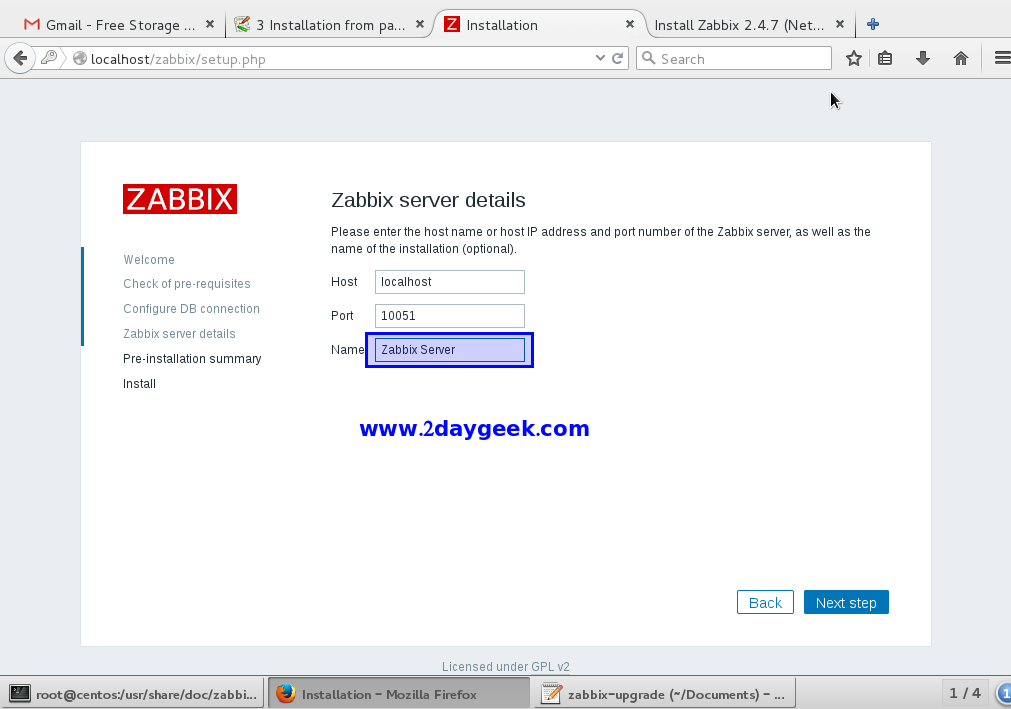

Enter Zabbix server details here, then hit NEXT to continue.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-4

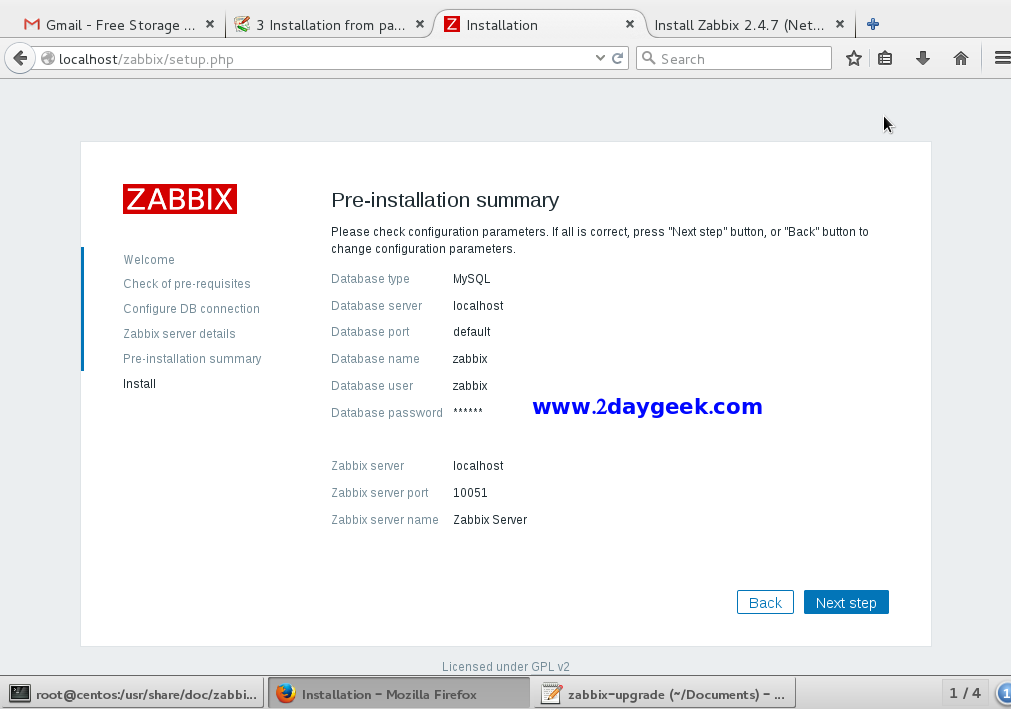

Check Pre-Installation Summary once, then hit NEXT to continue.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-5

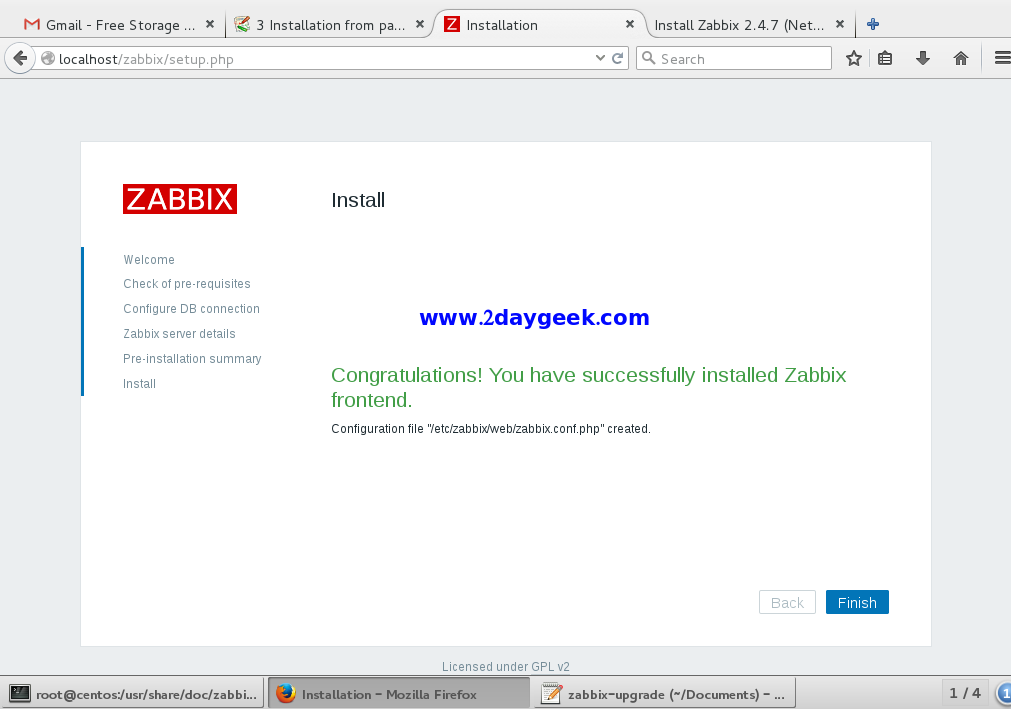

Click Finish to complete the installation.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-6

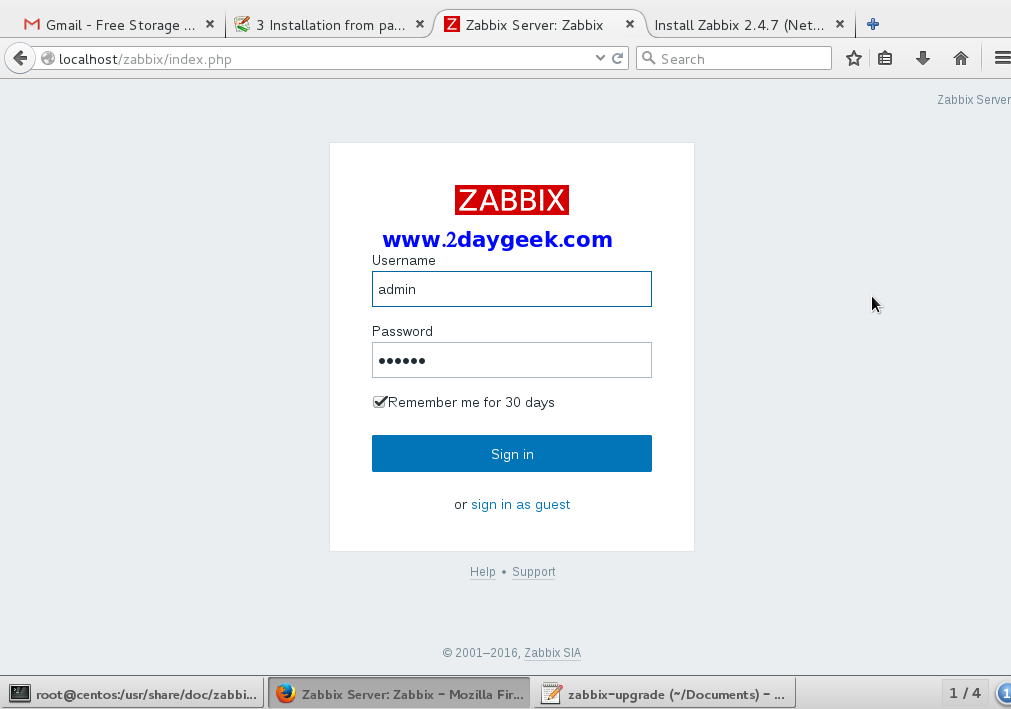

Login to Zabbix Web Interface, After hitting finish it will automatically redirect to login page. By default Username :admin and password Password : zabbix.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-7

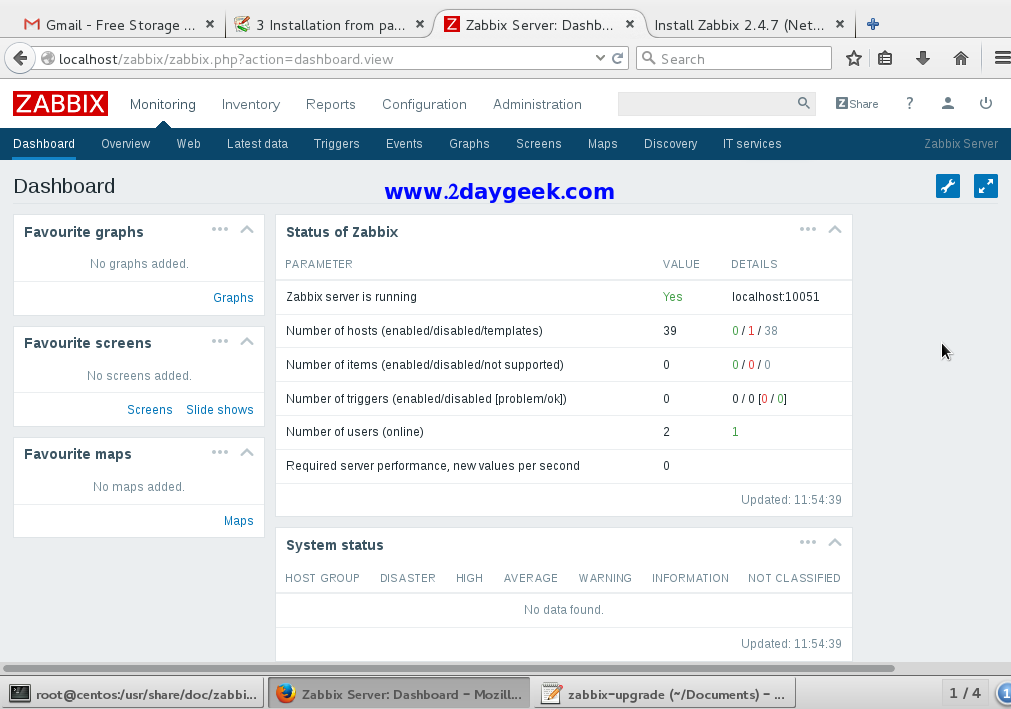

You have successfully installed Zabbix server. By default you will get this page after login.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-8

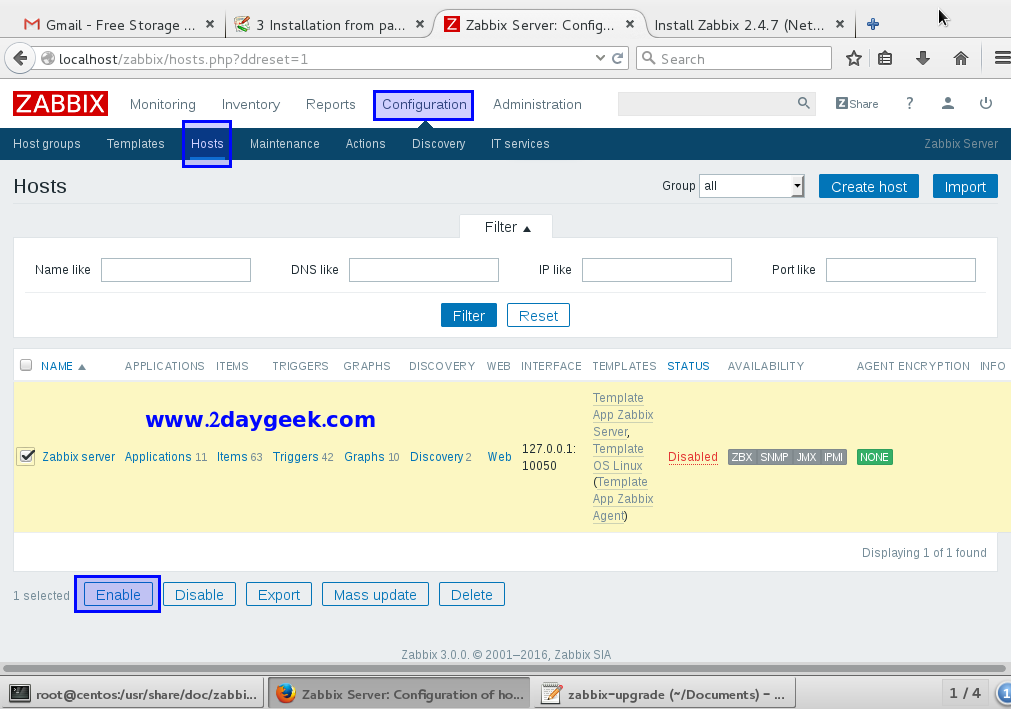

Checking zabbix server host : Configuration >> Hosts, By default zabbix server host added automatically but it’s not enabled. Just choose the zabbix server and select “Enable Selected” from drop down box, then hti Go to enable it.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-9

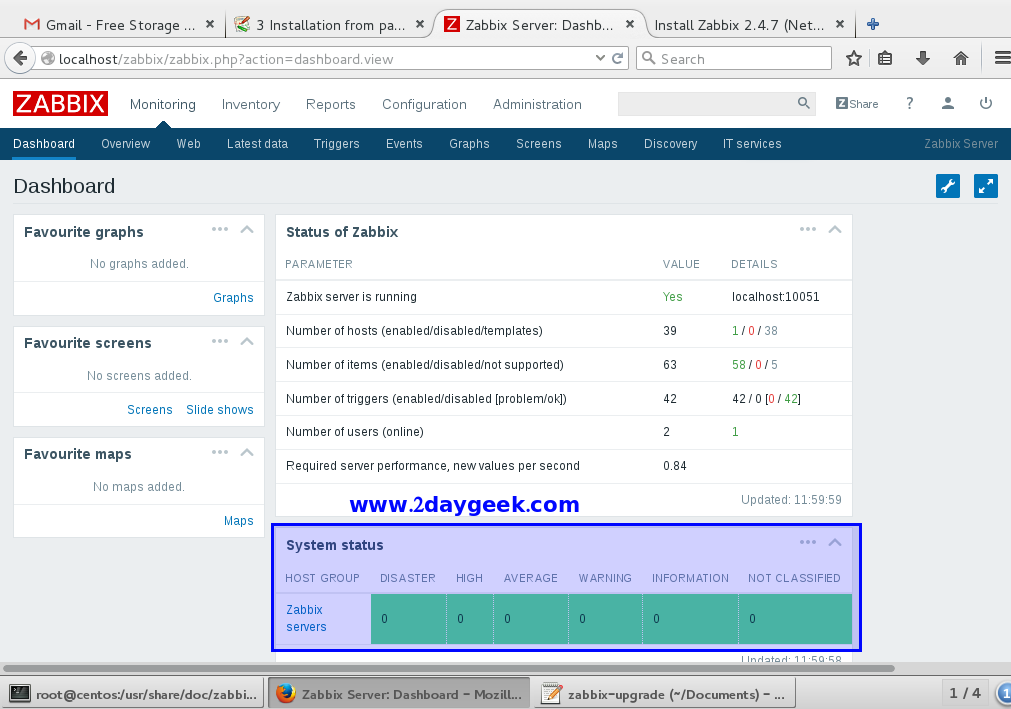

Now, you can see, Zabbix server monitoring got discovered.
install-zabbix-3-0-network-monitoring-tool-on-centos-rhel-10
In this article we have clearly explained how to install Zabbix server 3.0 on CentOS, Oracle Linux & RHEL, Also refer the articles for Linux Remote Host adding & Windows Remote Host adding into Zabbix Server.

Post your valuable feedback/suggestions!! Thank you !!
