Atop is an ASCII full-screen system performance monitoring tool for Linux that is capable of reporting the activity of all server processes (even if processes have finished during the interval).
It’s logging of system and process activity for long-term analysis (By default, the log files are preserved for 28 days), highlighting overloaded system resources by using colors, etc. It shows network activity per process/thread with combination of the optional kernel module netatop.
[ac-button size=”large” color=”orange” style=”flat” icon=”fa-link” url=”https://www.2daygeek.com/category/monitoring-tools/” target=”_blank”]Check other Monitoring Tools for Linux[/ac-button]
atop is a Linux process monitor tool which is similar to top but provides major advantages compared to other performance monitoring tools such as top, etc.
It shows system resources activity such as CPU utilization, memory utilization, swap utilization, disks (including LVM), disk I/O, network utilization, priority, username, state and exit code for every process (and thread).
- Resource consumption by all processes
- Utilization of all relevant resources
- Permanent logging of resource utilization
- Highlight critical resources
- Scalable window width
- Resource consumption by individual threads
- Watch activity only & Watch deviations only
- Accumulated process activity per user
- Accumulated process activity per program
- Network activity per process
1) Install atop on Linux
atop package is not available on RHEL/CentOS system official repository, so we need to Install/Enable EPEL Repository to get the package installed. For other distribution we can get it from official distribution repository.
[For RHEL/CentOS & upto Fedora 21] $ sudo yum install atop [Fedora 22 and later] $ sudo dnf install atop [For Debian/Ubuntu/Mint] $ sudo apt install atop [Arch Linux Based System] $ sudo pacman -S atop [Mageia] $ sudo urpmi atop
1a) Install atop on openSUSE
atop package is not available on openSUSE system official repository, so we need to add additional repository.
[For openSUSE Leap 42.1]
$ sudo zypper addrepo http://download.opensuse.org/repositories/server:monitoring/openSUSE_Leap_42.1/server:monitoring.repo $ sudo zypper refresh $ sudo zypper install atop
[For openSUSE 13.2]
$ sudo zypper addrepo http://download.opensuse.org/repositories/server:monitoring/openSUSE_13.2/server:monitoring.repo $ sudo zypper refresh $ sudo zypper install atop
[For openSUSE Leap 13.1]
$ sudo zypper addrepo http://download.opensuse.org/repositories/server:monitoring/openSUSE_13.1/server:monitoring.repo $ sudo zypper refresh $ sudo zypper install atop
2) Adjust Atop configuration
By default atop store the activity on every 10 mins interval, if you want to log the activity on every 1 min for critical production server, you can do by modifying the interval value from
600 to 60 on atop config file.
[Debian based systems] $ sudo nano /etc/default/atop [RPM based systems] $ sudo nano /etc/sysconfig/atop [Arch Linux based systems] $ sudo nano /etc/atop/atop.daily INTERVAL=60
Note Logs are located @ /var/log/atop/ and you can check the history when you want.
3) Atop Usage

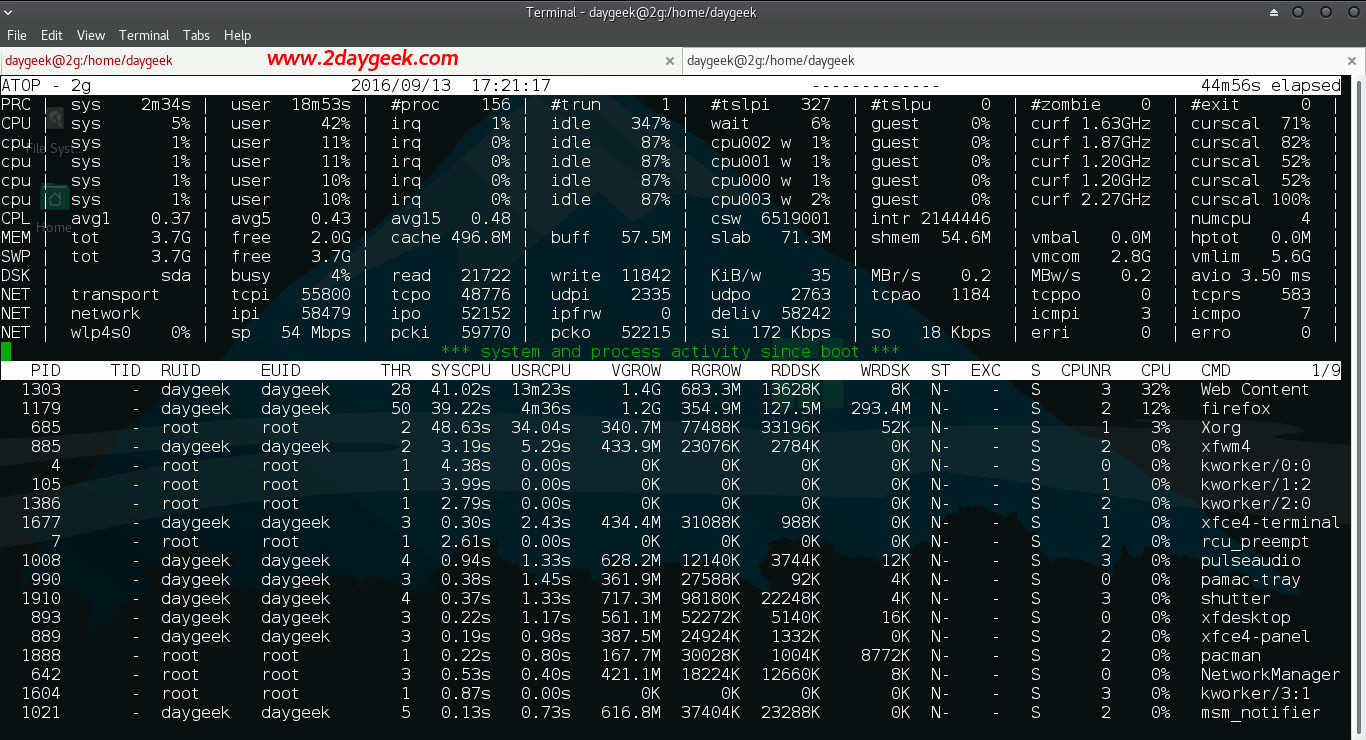

After successful installation, just type
atop to monitor the Linux process activity, which will update every 10 seconds. The output is similar to top, see below.

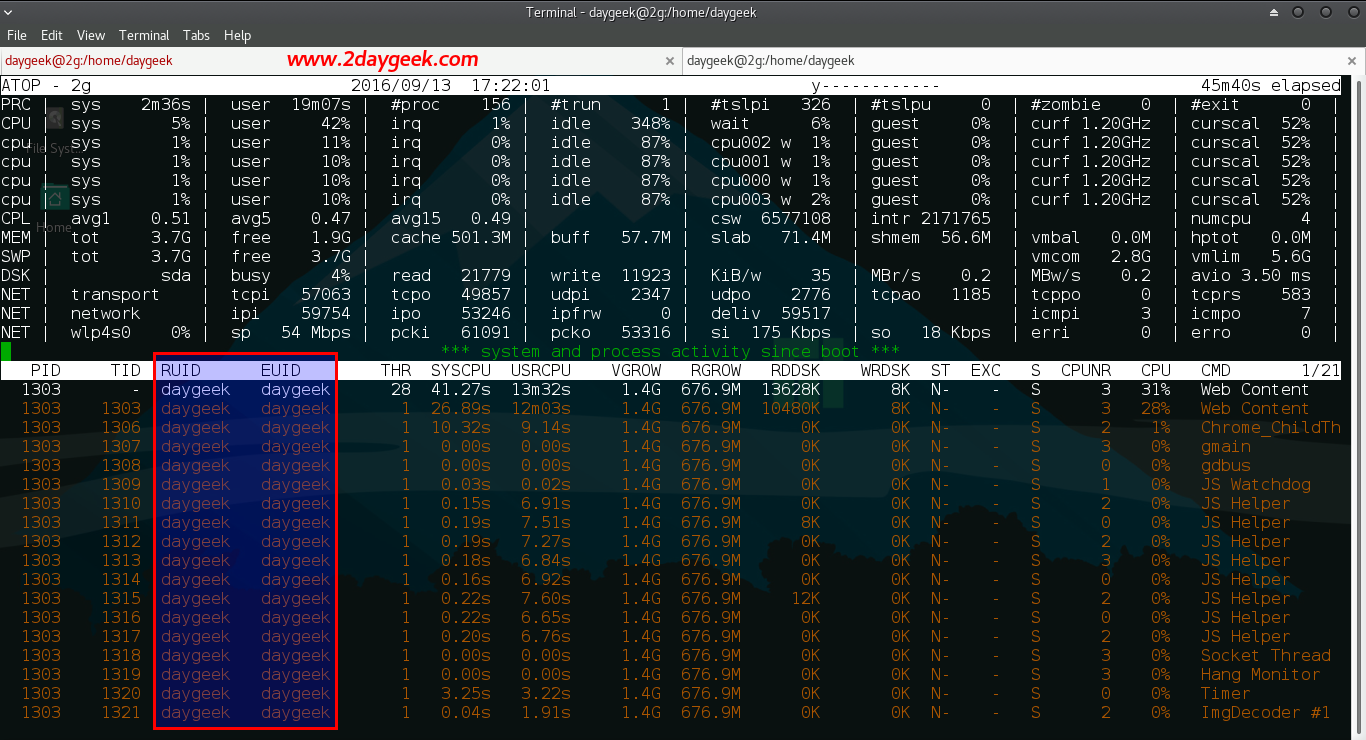

$ atop -y
Memory Utilization information : atop with help of
-m flag shows running process memory information such as VSIZE, RSIZE, VGROW, RGROW & MEM.
VSIZEShows total virtual memory usage per process
RSIZEShows total resident memory usage per process
VGROWShows virtual memory growth during the last interval
RGROWShows resident virtual memory during the last interval
MEMShows actual memory usage percentage
$ atop -m

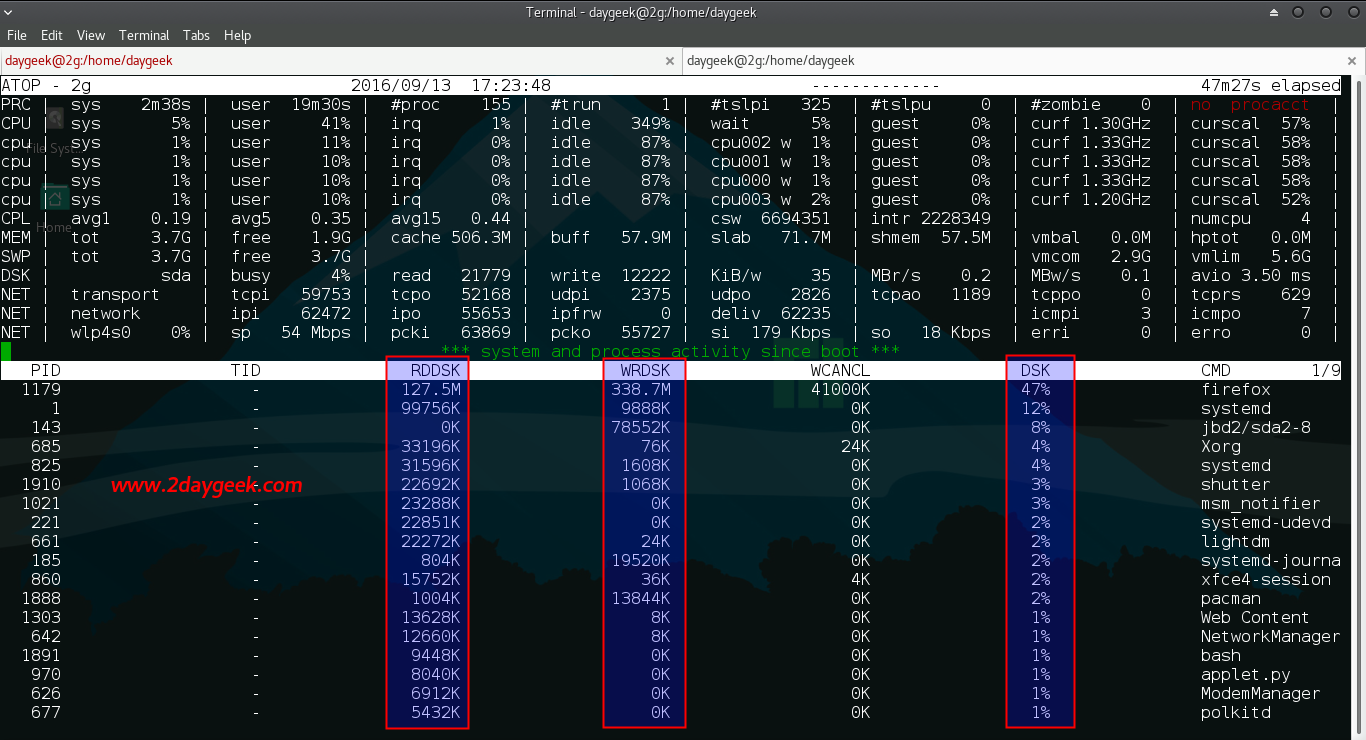

Disk Utilization information : atop with help of
-d flag shows disks activity information. RDDSK shows amount of data read & WRDSK shows amount of date write. DSK shows amout of Read & Write for the process.
$ atop -d
atop with help of
-v flag shows various process information such as pid (Process Identifier), ppid (Parent Process Identifier), RUID (User Identifier), RGID (Group Identifier), date & time.
$ atop -v

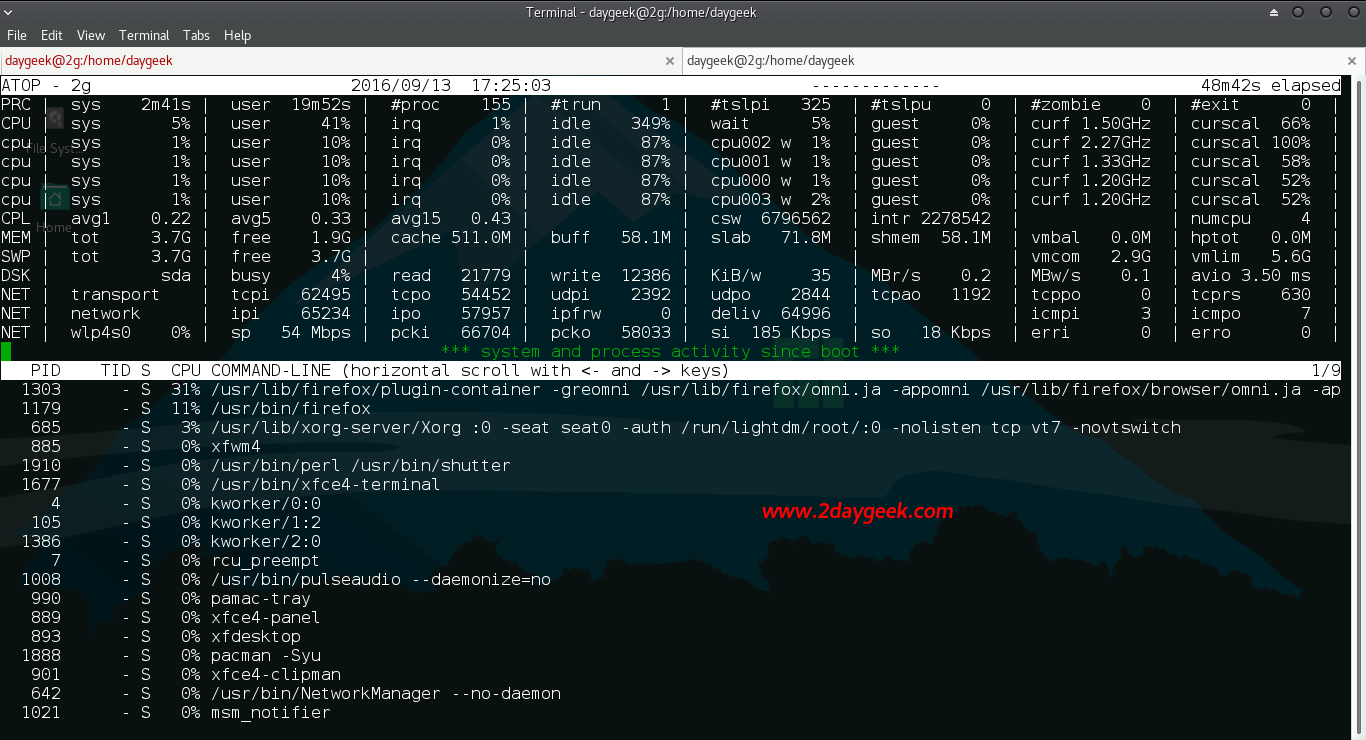

$ atop -c
atop with help of
-u flag shows, how many process (process count) are active for each user.
$ atop -u

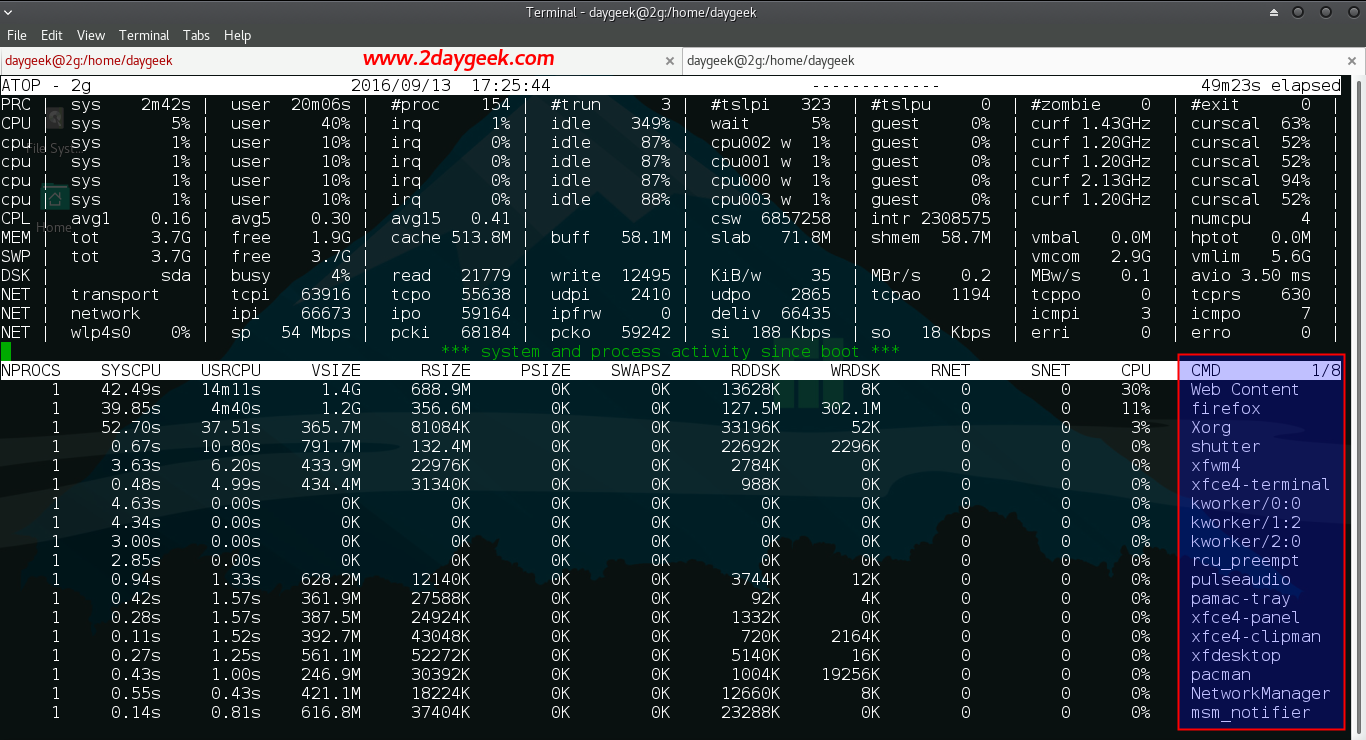

$ atop -p
Alternatively you can sort processes in order of high consumption.
CSort processes in order of cpu-consumption (default)
MSort processes in order of memory-consumption
DSort processes in order of disk-activity
NSort processes in order of network-activity
ASort processes in order of most active resource (auto mode)
4) Install & configure netatop on Linux
There is no official package for netatop and we have to compile manually on Linux. Install required dependency packages kernel-devel, zlib-devel & zlib1g-dev to make it work netatop.
[For RHEL/CentOS & upto Fedora 21] $ sudo yum install kernel-devel zlib-devel [Fedora 22 and later] $ sudo dnf install kernel-devel zlib-devel [For Debian/Ubuntu/Mint] $ sudo apt install zlib1g-dev
Visit the netatop page and download the latest release and follow the below procedure.
$ wget http://www.atoptool.nl/download/netatop-1.0.tar.gz $ tar -xvf netatop-1.0.tar.gz $ cd netatop-1.0 $ sudo make $ sudo make install
Load the module and start the daemon.
[For SysVinit system] $ sudo service netatop start [For systemd system] $ sudo systemctl start netatop.service
Load the module and start the daemon on boot.
[For RPM based SysVinit system] $ sudo chkconfig --add netatop [For Debian based SysVinit system] $ sudo update-rc.d netatop defaults [For systemd system] $ sudo systemctl enable netatop.service
Check the network usage, atop with help of
