phpVirtualBox – A Web Based Powerful Front End Client For VirtualBox

phpVirtualBox is an open source, web-based client or front end for VirtualBox which written in PHP.

Simple, powerful & modern web interface, it allows you to access and control remote VirtualBox instances.

phpVirtualBox is designed to allow users to Administrate & Manage VirtualBox in a headless environment – mirroring the VirtualBox GUI through its web interface.

When you installed virtualbox on server without GUI, phpVirtualBox is ideal solution to Manage & Administrate VirtualBox in a headless environment.

Make sure you have installed VirtualBox & VirtualBox Extension pack on your environment before proceeding phpVirtualBox installation.

Also Install Apache & PHP for web based access on client system. Navigate to the following article to install VirtualBox on Arch Linux/Manjaro systems.

If you would like to check for alternative tool for phpVirtualBox, i would suggest you to use RemoteBox.

[Install Apache & PHP]
$ sudo apt-get install apache2 php5 php5-mysql libapache2-mod-php5 php-soap

[Start Apache Service on deb based system & openSUSE]
$ sudo systemctl start apache2
$ sudo /etc/init.d/apache2 start

[Start Apache Service on RPM based system]
$ sudo systemctl start httpd
$ sudo /etc/init.d/httpd start

Visit phpVirtualBox official Website and download the latest version phpVirtualBox

$ sudo wget https://sourceforge.net/projects/phpvirtualbox/files/phpvirtualbox-5.0-5.zip
$ sudo unzip phpvirtualbox-5.0-5.zip
$ sudo mv phpvirtualbox-5.0-5 /var/www/html/phpvirtualbox
$ sudo chmod 777 /var/www/html/phpvirtualbox

VirtualBox provides a service called vboxwebsrv which allow phpVirtualBox to connect to it.

[Create Vboxwebsrv user : Use existing user or create new users as your wish]
$ sudo useradd virtual
$ sudo passwd virtual

[Add the user to vboxuser group]
$ sudo usermod -a -G vboxuser virtual

Edit or create the following configuration file using your preferred text editor and Add the following contents.

$ sudo nano /etc/default/virtualbox
VBOXWEB_USER="virtual"

Configure phpVirtualBox by editing config.php file.

$ sudo cp /var/www/html/phpvirtualbox/config.php-example /var/www/html/phpvirtualbox/config.php
$ sudo nano /var/www/html/phpvirtualbox/config.php
[...]
var $username = 'virtual';
var $password = '12345';
[...]

Start the virtualbox web service

[Start the virtualbox web service on systemd Systems]
$ sudo systemctl start vboxweb-service

[Start the virtualbox web service on SysVinit Systems]
$ sudo /etc/init.d/vboxweb-service start

Enable the virtualbox web service on boot.

[Start the virtualbox web service on systemd Systems]
$ sudo enable start vboxweb-service

[Start the virtualbox web service on SysVinit Systems]
$ sudo chkconfig vboxweb-service on

Restart Apache Web service.

[Restart Apache Service on deb based system & openSUSE]
$ sudo systemctl restart apache2
$ sudo /etc/init.d/apache2 restart

[Restart Apache Service on RPM based system]
$ sudo systemctl restart httpd
$ sudo /etc/init.d/httpd restart

3) Working with phpVirtualBox

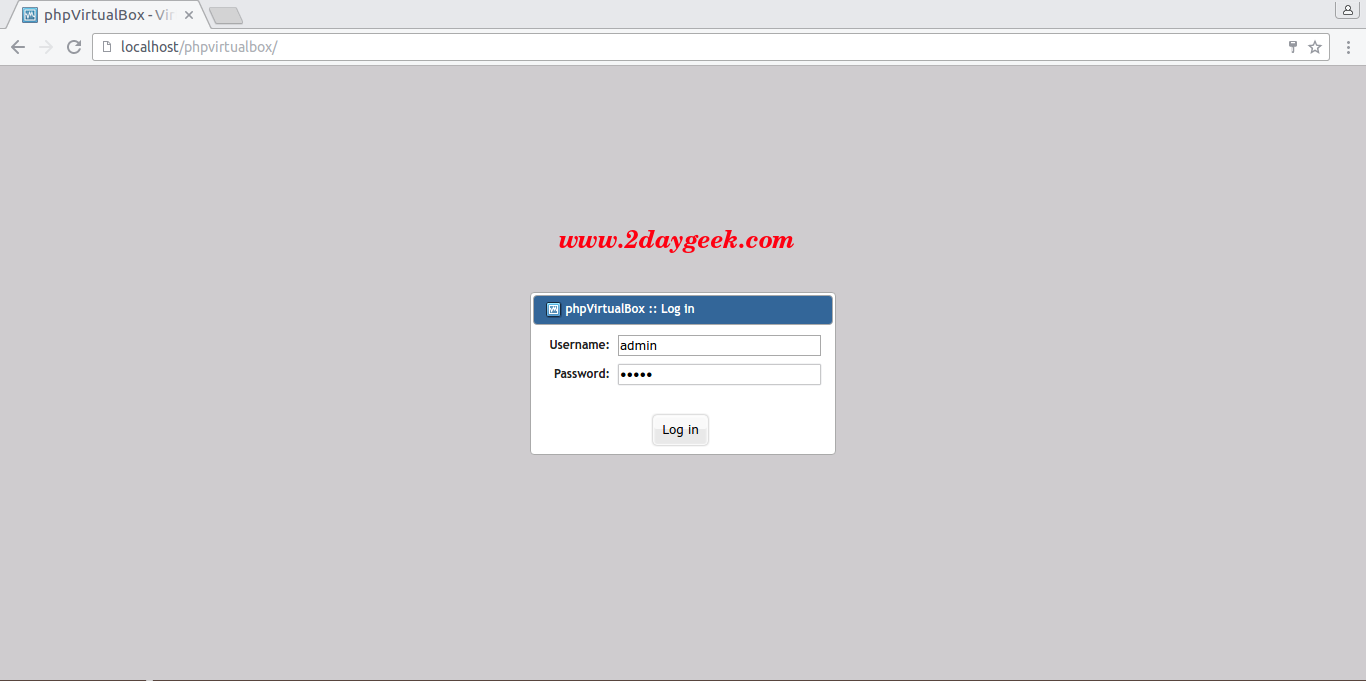

Now you can access phpVirtualBox Web console on any system which have GUI desktop environements through http://ip-address-of-virtualbox-server/phpvirtualbox. The default username/password is admin:admin.
install-phpvirtualbox-web-based-virtualbox-client-1

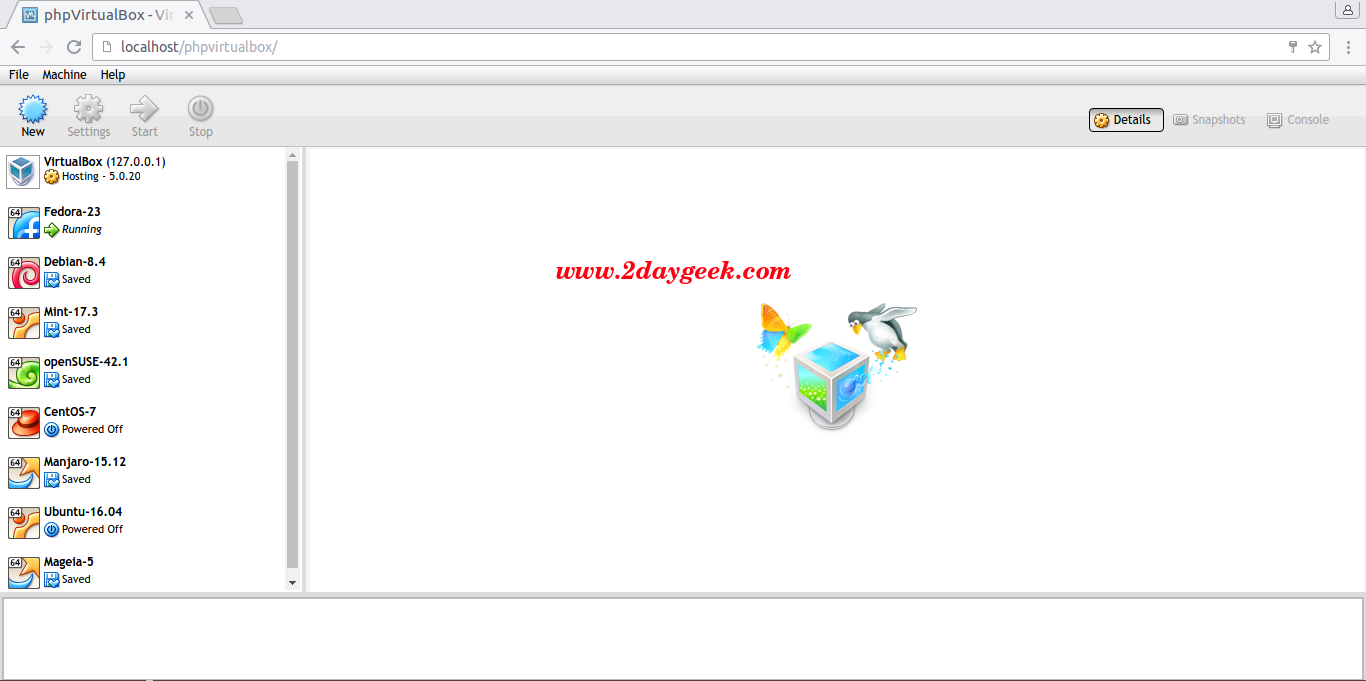

I have successfully got virtualbox interface, now you can Manage & Administrate the VM’s.
install-phpvirtualbox-web-based-virtualbox-client-2
